Y-Type Strainer Manufacturer for Pipeline Equipment Protection
Key features:
Hubluxe stands out as a global Y-Type strainer manufacturer in accordance with ASME B16.5 offering robust filtration solutions to protect important equipment in pipeline.
Stainless steel filter screen with option to upgrade to higher grade like SS316, SS304L, SS316L etc.
Mesh size starting from 7 can go upto 1250 depending on requirements
Larger strainer sizes are manufactured as fabricated type
End connections available in Flange end, Threaded end, Butt weld & socket weld end
High filtration area & less pressure drop
Bolted or threaded cover for easy removal & replacement of screen

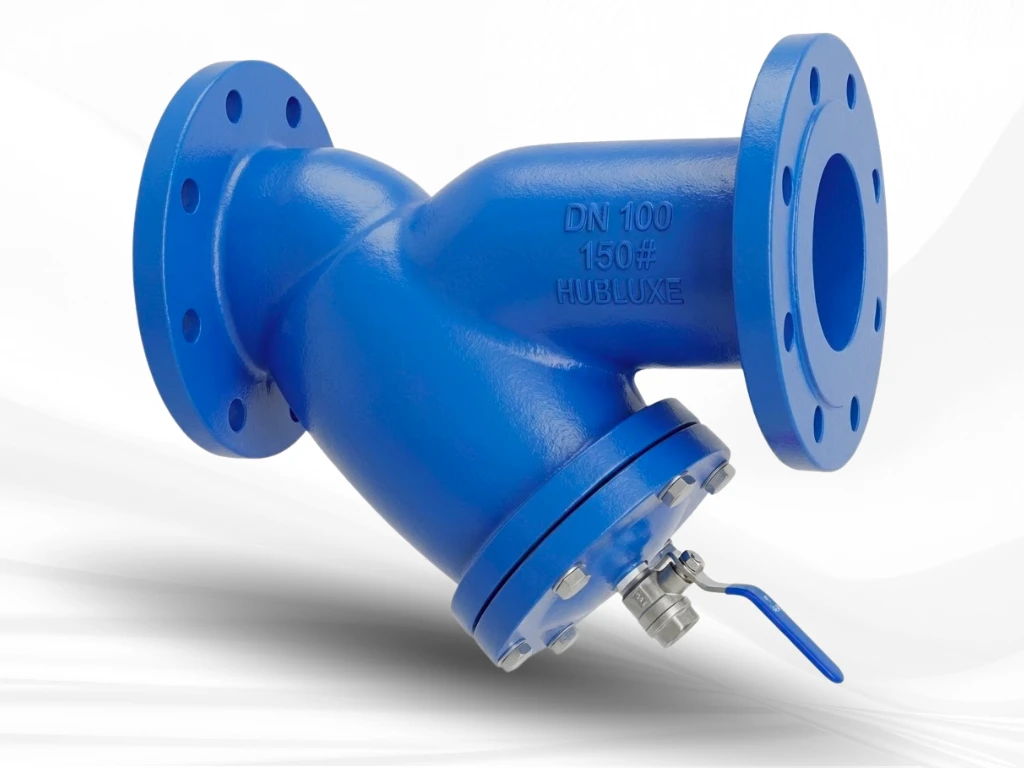

Drain plug is provided to drain out foreign particles accumulated in the strainer
Contact Hubluxe Engineering Y-Type Strainer Manufacturer for a competitive quote today.
“Hubluxe’s Industrial Y strainers – Your System’s First Line of Defence”
In pipeline systems utilizing Steam, Gas, or Liquids, even small amounts of debris (scale, rust, weld slag) can destroy Control Valves, Flow Meters, and Steam Traps.
Hubluxe Engineering’s Y-Type Strainers (Wye Type Strainer) act as the primary defense line. Unlike Basket Strainers which require horizontal lines, our Y-Type design creates a streamlined flow path that can be installed in both horizontal and vertical (downward) positions. Featuring a heavy-duty body and a precision Stainless Steel Wire Mesh Screen, it captures solids without significantly impacting line pressure, ensuring your critical downstream assets remain damage-free.
As a quality Y-Type strainer manufacturer, Hubluxe Engineering uses latest casting and fabrication techniques to ensure every strainer meets the highest industrial safety standards. Choosing a reliable Y-Type strainer manufacturer allows you to customize material grades such as Carbon Steel (WCB), Stainless Steel (CF8M), and Alloy Steel, to match your specific project requirements.
Every industrial project demands a Y-Type strainer manufacturer that complies strictly with international engineering codes such as ASME B16.34 and API 598.
When looking for a Y-Type strainer manufacturer, it is essential to partner with a manufacturing company that offers custom sizes and reinforced mesh perforation for protecting critical equipment.
Y-type strainer technical specifications:
Product: ‘HUBLUXE’ Y type strainers
Size: 1/2” to 24” (DN 15 – DN 600) – larger size will be fabricated design
Pressure rating: ANSI 150#, ANSI 300#
Material of construction (MOC): CI / WCB / CF8 / CF8M / CF3M
Mesh filter elements: available in SS304, SS304L, SS316, SS316L
Mesh size: Mesh 7 to Mesh 1250
Face to face: As per Hubluxe Engineering’s standard
Shell wall thickness: ANSI B16.34
- Hydro Test Pressure details:
- For class 150# Hydro shell – 32 kg/cm2 (430 psig)
- Foe class 300# Hydro shell – 80 kg/cm2 (1140 psig)
Other Strainer type:
Each product supplied by HUBLUXE as a Y-Type Strainer Manufacturer is engineered for reliable performance in oil & gas, power, and process industries.

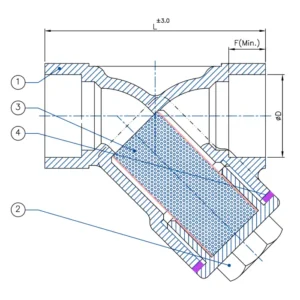

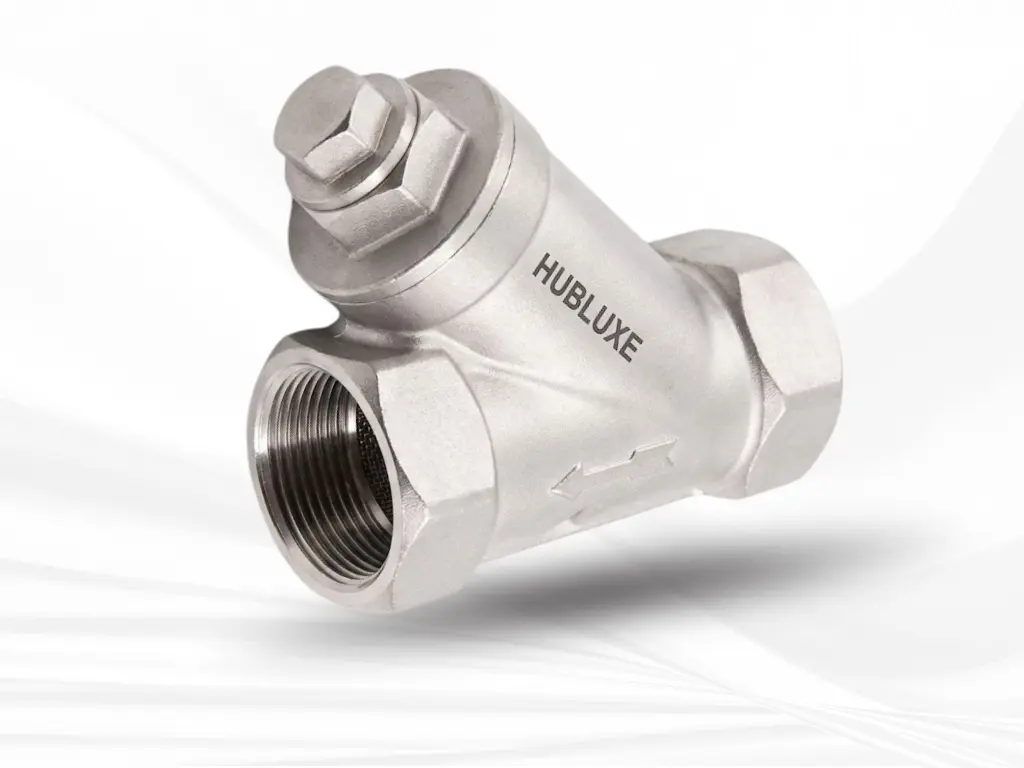

Y type strainer SCREWED END parts list:
| Sr. No. | Description | Materials |
|---|---|---|
| 1 | Body | WCB / SS304 / SS316 |
| 2 | Lock Nut | WCB / SS304 / SS316 |
| 3 | Screen | SS304 / SS316 (Mesh size: 20 / 40) |
| 4 | Body gasket | PTFE / GFT / CFT |
- Size: 15 NB – 50 NB (1/2” to 2”)
- End connection: Screwed end to BSP / BSPT / NPT / Socket weld end to ASME B16.11

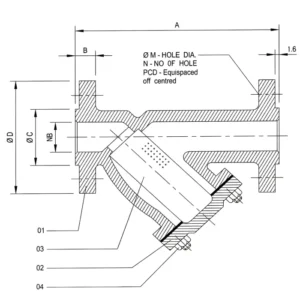

Y type strainer FLANGE END parts list:
| Sr. No. | Description | Materials |
|---|---|---|
| 1 | Body | WCB / SS304 / SS316 |
| 2 | Cover | WCB / SS304 / SS316 |
| 3 | Screen | SS304 / SS316 |
| 4 | Cover stud & nut | ASTM A193 Gr. B7 / ASTM A194 Gr. 2H |
Y type strainer applications:
Y type Strainers are easy to install in Pipelines & their main job is to protect pumps, meters, control valves, and other expensive equipment.
- Water treatment plant
- Natural gas & Air application
- Steam lines application
- HVAC systems
- Oil & gas industries
- Chemical industries
- Fertilizer plant
- Energy & Power plant
- Sugar industries
- Pharmaceutical industries
FAQs (Frequently asked questions)
Find detailed answers to common questions about Y-Type Strainer in our Knowledge centre.
Y type strainer as the name it is Y-shaped in design, and is mechanical filters used in pipelines to remove the unwanted materials, debris.
Its main job is to protect important equipment like valve, pumps, meters in pipeline. It also, prevents any blockages in the pipeline helping the system run smoothly.
The HSN code for Y type strainer is:
84818030 – Often used for industrial Y-type strainer valves (e.g., flanged or screwed metal strainers) — as seen in customs / import classification.
If the strainer is seen purely as filtering machinery rather than a valve type, some systems use 84212900 under Chapter 84 (filtering apparatus)
