Industrial Diverter Damper Manufacturer & Supplier

Name: Diverter Damper
Brand: HUBLUXE
Price: $$$
Availability: PreOrder

Engineered Y-type, T-type and 3-way diverter dampers for HRSG, gas turbine, waste heat recovery, bypass stack and flue-gas applications.

4.8/5 - (37 votes)

Hubluxe Engineering manufactures and supplies industrial diverter dampers for control, isolation and flow management of hot gas in power generation and process applications. Our diverter dampers are designed for HRSG and waste heat recovery systems, gas turbine exhaust, bypass stacks and high-temperature flue-gas service.

Available in Y-type, T-type and customized 3-way configurations, Hubluxe diverter dampers can be supplied with manual, gearbox, pneumatic or electric actuation according to process conditions, size, temperature, pressure and sealing requirements.

Key features:

Excellent build quality & high performance diverter damper
Withstand in high temperatures, vibrations & turbulence
Ease of installation & maintenance
High-integrity sealing designed to minimize gas leakage; seal-air arrangements can be provided for enhanced isolation performance.
Application: Exhaust Gases, Isolation, Gas Flow Control, Air ducts

Contact Hubluxe Engineering today for a competitive quote on Diverter dampers

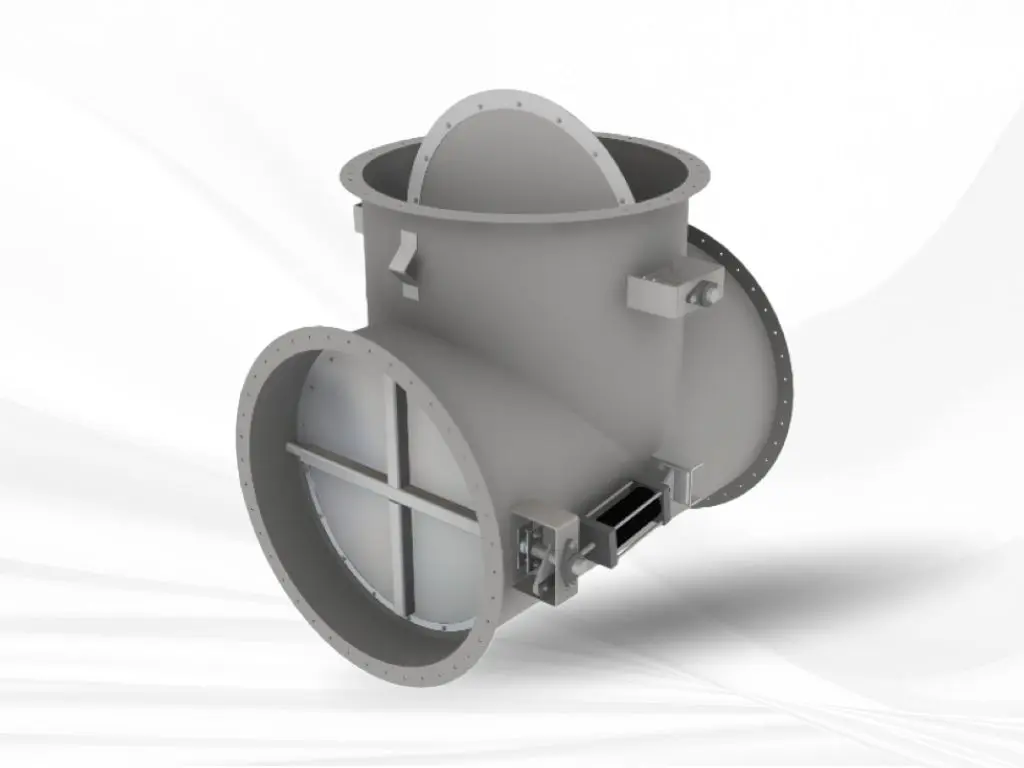

What Is a Diverter Damper?

A diverter damper is an industrial gas-flow valve used to direct process flow gas between the main process route and a bypass route. In HRSG and combined-cycle power plants, a diverter damper can route gas turbine exhaust toward the heat recovery steam generator or the bypass stack. Depending on the design, the damper can be used for flow control, distribution or isolation.

Diverter Damper is basically used to divert the flowing media. These dampers are designed with one inlet and two outlets with ONE common FLAPS. Drive shaft is actuated by the actuator / manual hand wheel which will rotate the blade in 90 degree in Clockwise for close and anticlockwise for Open.

In Combined Cycle Power Plants (CCPP), the ability to safely switch exhaust gas flow from the Gas Turbine to the Heat Recovery Steam Generator (HRSG) or the Bypass Stack is critical. A failure here means shutting down the entire turbine—a massive financial loss.

It utilize a Single Pivot Blade mechanism that allows for rapid modulation (under 30 seconds) between the main stack and the bypass. Engineered with high sealing efficiency (using Seal Air systems), our dampers ensure zero leakage of hot gas to the maintenance area, guaranteeing personnel safety during HRSG isolation.

In Mechanical-engineering analogy:
It’s basically like a railway switch for hot gas — instead of switching a train onto different tracks, the damper switches the exhaust gas onto different flow paths.

How Does a Diverter Damper Work?

A diverter damper is used to redirect the flow of hot gas or exhaust gas by directing the flow between two outlets from a common inlet. In a 3-way Diverter damper, one inlet is connected to gas source while two outlets are connected to different process such as HRSG and bypass stack. The internal flap or blade assembly moves in required position to direct the gas towards the selected outlet.

In a gas turbine powered power plant, the diverter is commonly installed between the gas turbine exhaust and HRSG.

During normal heat recovery process, the damper directs the hot exhaust gas from the turbine into the HRSG. The heat from exhaust is then used to produce steam. When bypass operation is needed, the flap changes its position and routes the exhaust towards the bypass stack, allowing HRSG path to be bypassed.

Hubluxe Engineering manufactures these dampers with options to operated it with manually, pneumatic, or with electrical actuator system.

For applications involving high-temperature exhaust or flue gas, the damper can be designed with heat-resistant materials, proper sealing arrangements, and position control to ensure reliable operation.

Technical specifications:

Product: ‘HUBLUXE’ Diverter damper
Type: Y type Single Flap, T Type Double Flap, Box type
Size: 100 mm upto 6000 mm
MOC: IS2062, SS304, SS316, Inconel (Higher grade material on request)
Sealing efficiency: upto 99.5% (High-integrity air sealing is available to minimize gas leakage and enhance isolation performance)
Design Temperature: Upto 1000 deg. C
Operation: Lever, Gearbox, Pneumatic & Electrical Actuator operated

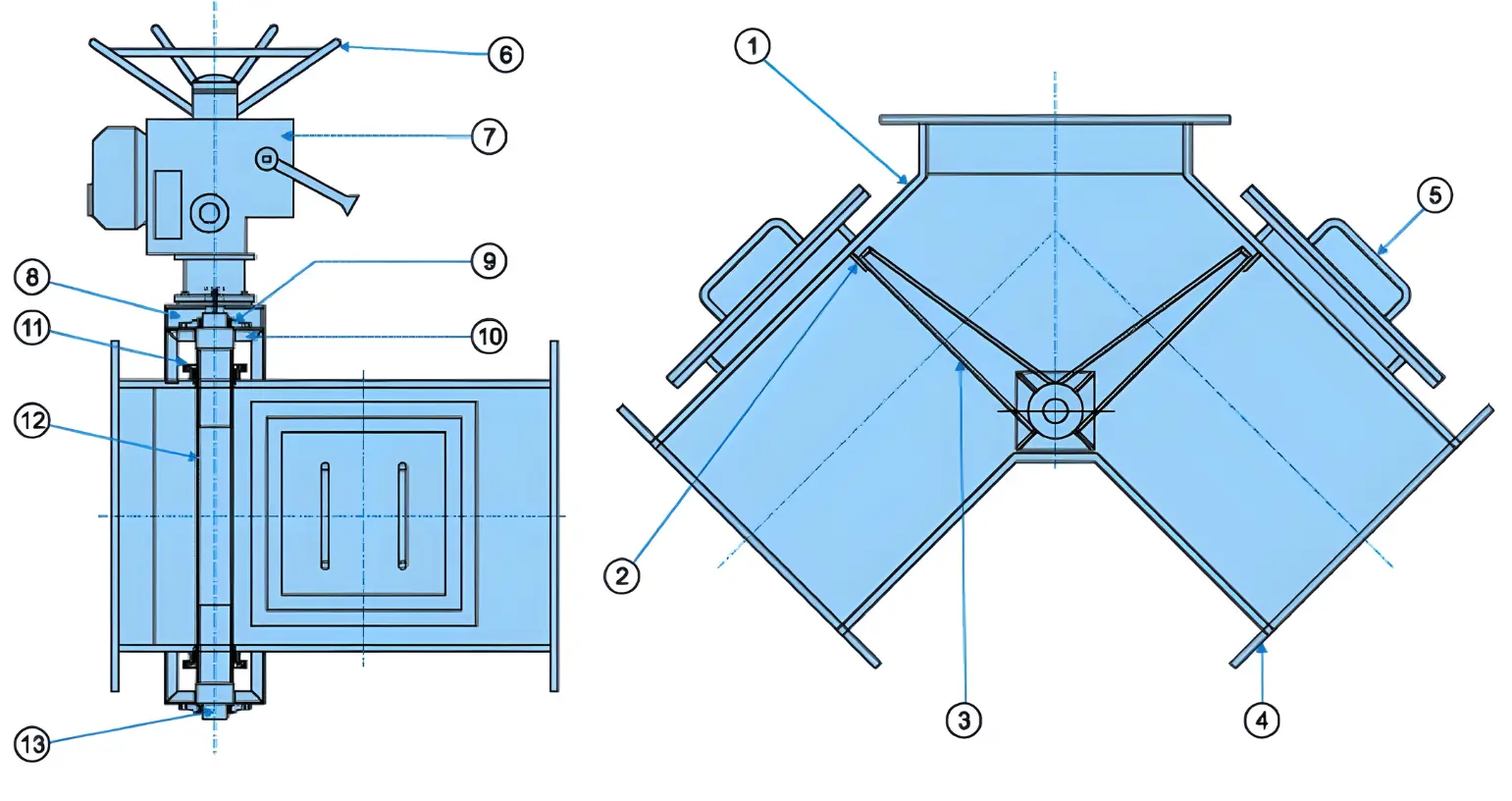

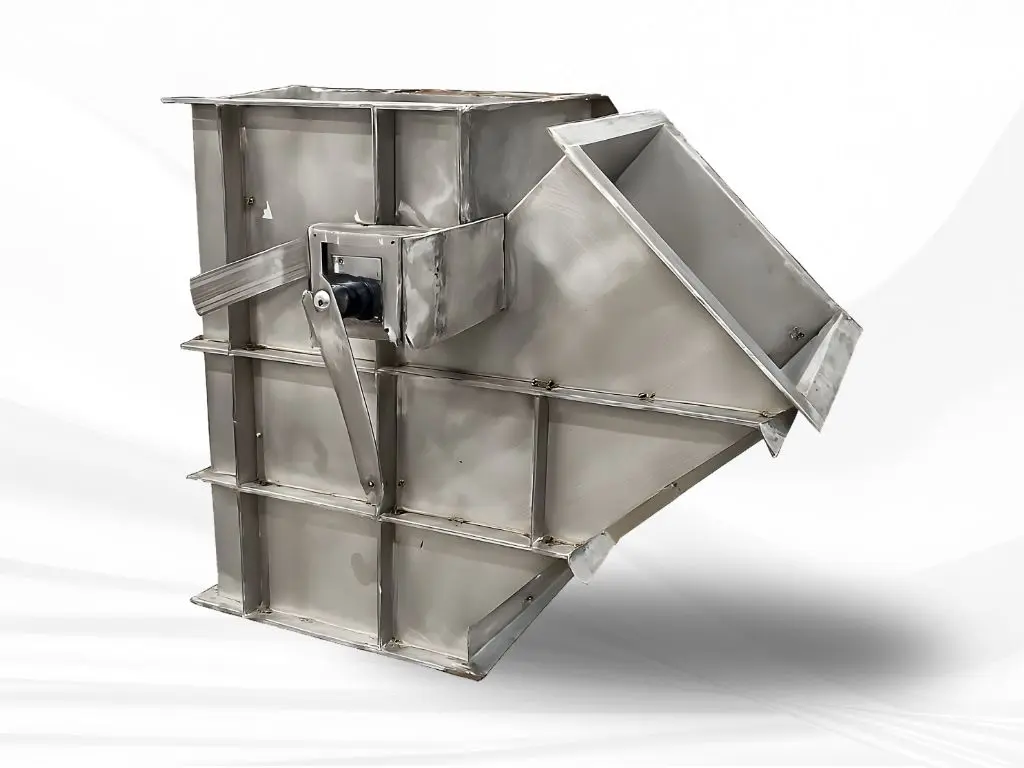

Y type 3 way design:

List of materials:

Part No.	Description
1	Housing
2	Sealing Plate
3	Flap
4	Flange
5	Inspection Window
6	Hand Wheel
7	Electric Actuator
8	Mounting brackets for Electrical Actuator
9	Bearing
10	Bracket for bearing
11	Stuffing Box
12	Stuff Pipe
13	Stuff shaft

T type double flap:

Part No.	Description
1	Housing
2	Flange
3	Flap
4	Flap Seal
5	Electrical Actuator
6	Stopper Bar
7	Bush
8	Bush Housing
9	Actuator Mounting Stand
10	Hand Wheel
11	Stub End Shaft
12	Spring
13	Link Assembly
14	Mounting Skid
15	Stuffing Box

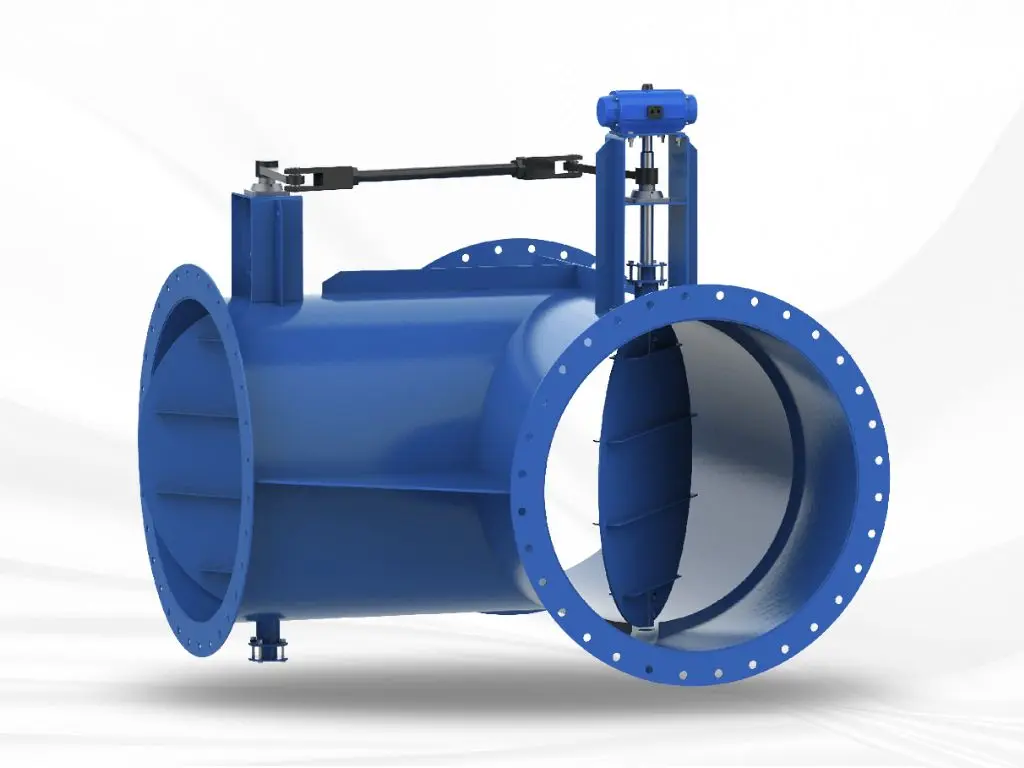

All diverter damper types can be supplied with Gearbox, Pneumatic & Electrical actuated operations.The T type or Y type damper is manufactured with an operator mounted to one damper and a slave linkage to another Damper.

The linkages are designed in such a way that one damper opens, the other damper will close. The complete pre-assembled and adjusted unit is sent to the job site for easy installation saving time & cost both.

Note:
1. Available with following actuation option such as with Gearbox, Pneumatic & Electrical actuator operations.
2. Make / Brand: Hubluxe
3. All dampers undergo a strict quality checks and performance test before they are ready for shipment.

The HUBLUXE make Diverter Damper valve is suitable for a wide range of industrial applications, paticularly to regulate the airflow / gasflow:
