Wafer Type Butterfly Valve Manufacturer for Industrial Applications

5/5 - (1 vote)

Key features:

  • Multiple configuration options:  Wafer type butterfly valve is available in following design: Wafer, Lugged (Semi-lug, Full Lug design)

  • Compliant with international standard: Designed & manufactured as per API 609 / BS 5155 / IS:13095 / EN 593

  • Universal Flange Compatibility: Designed to fit between ANSI Class 150, DIN PN10/16 standard flanges
  • Zero Leakage Sealing: Precision-molded elastomer seats (EPDM, Nitrile, Viton) or High-Performance PTFE linings ensure bubble-tight shut-off

  • Automation ready: ISO 5211 mounting pad allows for direct mounting of Pneumatic and Electric Actuators

Optimize Your Flow Control / shut off in pipelines. Get a complete range of Butterfly valves with Hubluxe Engineering.

Send Enquiry

Types of Butterfly Valves:

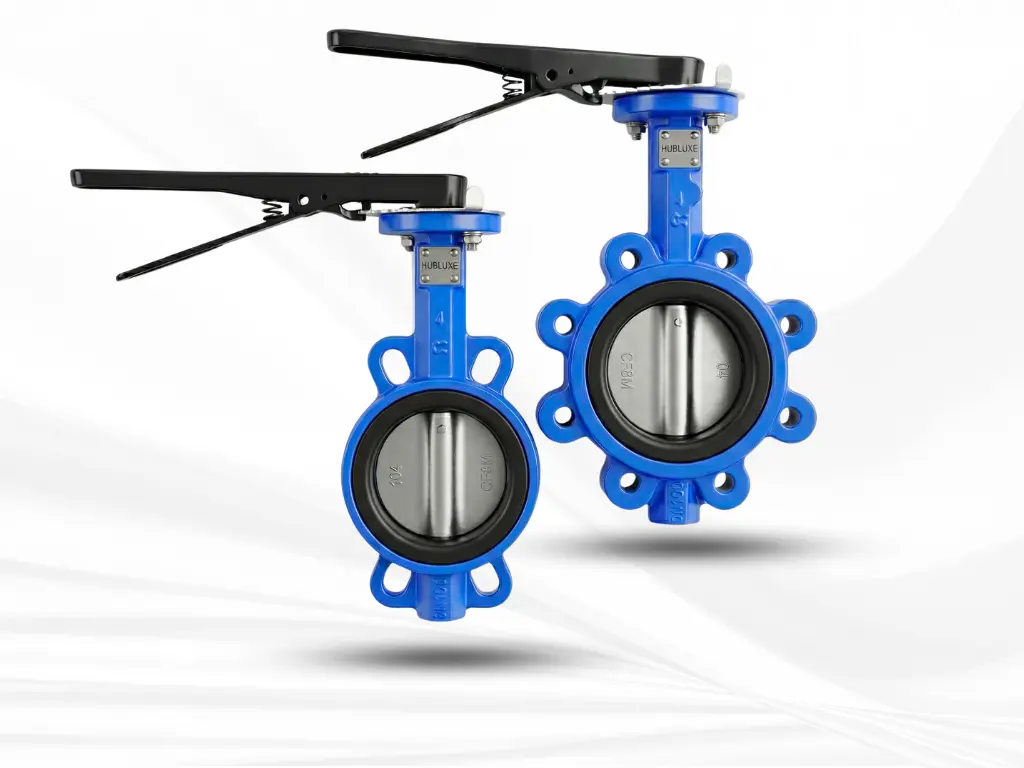

Wafer type butterfly valve hand lever operated centric disc design for quick open-close water application

Technical Data:

  • Product: ‘HUBLUXE’ wafer type butterfly valve
  • Size Range: DN40 – DN300 (1 ½” – 12”)
  • Body design: Wafer design flangeless
  • Body Materials: Cast Iron (CI), Ductile Iron (DI), WCB, SS304 / SS316 / Aluminium
  • Disc Materials: Ductile Iron, WCB, SS304, SS316, Al-Bronze, PTFE Coated
  • Seat / Liner options: Nitrile (NBR), EPDM, PTFE (Teflon), Silicon, Viton (FKM), Hypalon

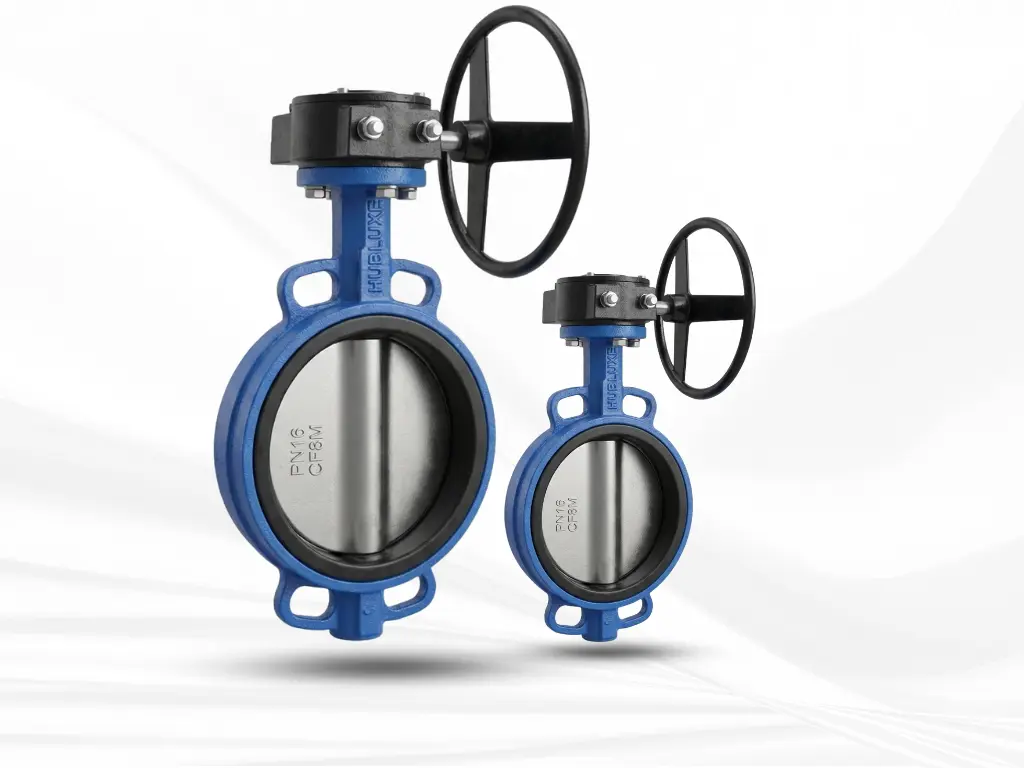

  • Operation: Hand Lever (up to 6″), Gear Box (8″+), Pneumatic / Electric Actuator
Send Enquiry

Manufacturing Standards & Butterfly valve dimensions:

  • Design & manufacturing standard: BS 5155 / API 609 / EN 593 / IS:13095
  • Pressure rating: PN 10 / PN 16 / PN 20 (on request)
  • End connection: Wafer type Flangeless to suit between ANSI B16.5 / BS10 / DIN flanges
  • Face to face standard: BS 5155 / ISO 5752 / API 609
  • Top flange drilling for actuator: ISO 5211
  • Flange standard: ANSI 150 / ANSI 125 / BS 10 Table D & E / IS:6392
  • Inspection & testing standard: BS 6755 Part-I / API 598 / EN 12266-1

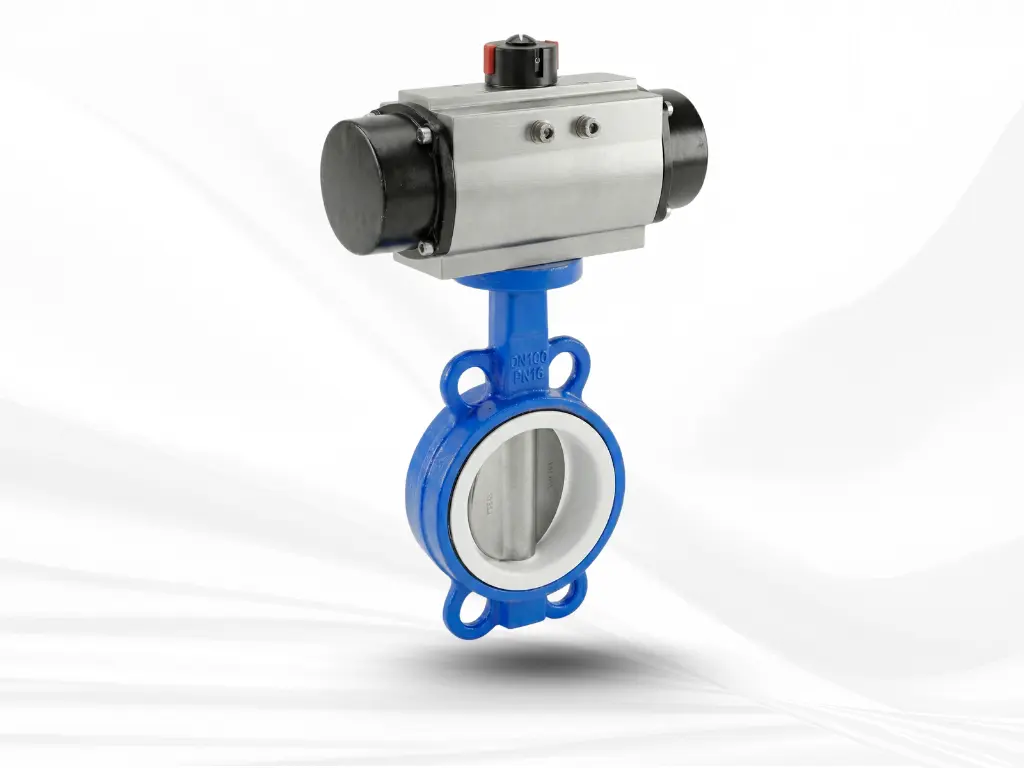

Pneumatic actuated butterfly valve PTFE lined body with sigle / double acting cylinder for corrosive acid service

Technical Data:

  • Product: Lined Butterfly Valves – Wafer Type (PTFE / PFA / FEP / PVDF)

  • Types: MS PFA Lined Butterfly valve / SS316 PFA Lined Butterfly Valve / PTFE Lined Butterfly valve / SS304 PTFE Lined butterfly valve

  • Size Range: DN50 to DN100 (2” to 4”)

  • Standard Resin Specifications: PTFE: ASTM D 1457, PFA: ASTM D 3307, PVDF: ASTM D 3222, FEP: ASTM D 2116

  • Outer body: ASTM A 395 Gr 60-40-18

Send Enquiry

Manufacturing Standards & Test details:

  • Flange Connection: ANSI B 16.5

  • Face to Face: ANSI B 16.10

  • Spark Test: 15 KVA

  • Hydro Test: at 29.8 kg/cm2

  • FEP- Max Temp: 180° Deg. C

  • PP Max Temp: 100° Deg. C

  • PFA Max Temp: 200° Deg. C

Butterfly valve manufacturer (Wafer type, Double offset & Triple offset)

At Hubluxe Engineering, we are dedicated to redefining industrial efficiency through superior valve technology. As a renowned Butterfly Valve Manufacturer, we specialize in manufacturing wide range of high-performance Butterfly valves for various industrial applications.
Our Wafer type butterfly valve, is engineered for dual installation capability, ease of use, compact & lightweight with leakproof isolation in water, chemical & HVAC applications.

With advanced automation options such as Pneumatic Wafer Type Butterfly Valve, we ensure seamless flow control as per your requirements. All our Butterfly Valve dimensions, offers compatibility & reliability across systems. At the same time, we remain committed to offering competitive Wafer Butterfly Valve Price options, ensuring that our clients receive premium quality without compromising on value.

At Hubluxe Engineering, our mission is clear: to combine technical mastery with customer‑focused innovation, ensuring that every valve we deliver enhances performance, safety, and operational efficiency.

At Hubluxe Engineering, we don’t just sell valves; we engineer reliability.

Industry Applications of Hubluxe Wafer Type Butterfly Valves & Lined Butterfly valves

  • Oil & gas
  • Petrochemicals
  • Power generation
  • Water treatment & STP
  • LNG
  • HVAC
  • Corrosive chemicals
  • Chlor-alkali
  • Oil & gas
  • Petrochemicals
  • Power generation
  • Water treatment & STP
  • LNG
  • HVAC
  • Corrosive chemicals
  • Chlor-alkali
Industry Primary medium Recommended Seat Material
Water Clean Water / Sewage EPDM
HVAC Chilled / Hot Water / Glycol EPDM
Oil & Gas Fuels / Lube Oil / Diesel Nitrile (NBR) / Viton
Chemical Acids / Bleach / Solvents PTFE / PFA (Lined)
Food/Pharma Edible Fluids / Syrup Food Grade EPDM / White Nitrile
Marine Seawater EPDM / NBR (Al-Bronze Disc)
Cement/Powder Dry Air / Cement Dust Wear Resistant NBR

Explore Our Other Engineered Valves

Slide Gate valve
Double Disc Gate Valve
Goggle Valve
Angle Slurry Valve
Butterfly Damper
Forged Ball Valve
Knife Edge Gate Valve
Rotary Airlock Valve (RAV)
Safety Relief Valve
Y Type Strainer

FAQs (Frequently asked questions)

Find detailed answers to common questions about Wafer Type Butterfly Valves in our Knowledge centre.

What is the difference between Wafer and Lug type butterfly valves?

A Wafer Type Butterfly Valve is sandwiched between two pipe flanges using fasteners. It is lighter and cheaper option, but cannot be used as an end-of-line valve.

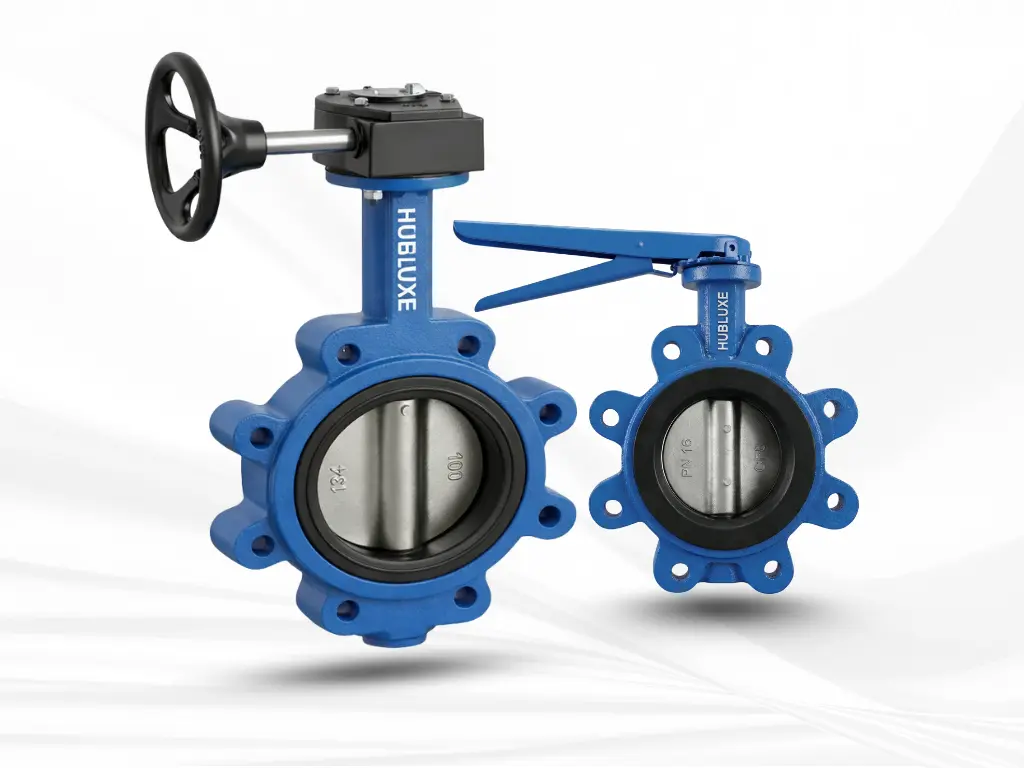

A Lug Type valve has threaded inserts for bolts, allowing the downstream pipe to be removed while keeping the upstream side under pressure.
