Tank Bottom Angle Bayonet Valve Manufacturer for Alumina & Slurry Applications
Key features:
- Designed & engineered for severe service in mining, alumina applications where erosion & scales are present
- Heavy duty design for body & flange thickness
- Stellite 6 hardfacing provided as a standard on disc & seat
- Other Internal lining options are available to combat erosion & corrosion
- Custom face to face dimensions is available as per requirement
- Hard facing on stem is available
- Design as per ASME B16.34 & testing as per API 598
- Actuation options: Lever operated, handwheel with chain operated are available
- Feature of regrounding in-line makes it best choice amongst leading slurry angle bayonet valve manufacturer
Contact Hubluxe Engineering today for a competitive quote on Tank Bottom Angle Bayonet Valve.
HUBLUXE ENGINEERING manufactures Tank Bottom Angle Bayonet Valve as per global standards. The valves are engineered with high precision and durable design for longer service life.
Our in-house design, manufacturing, testing & quality assurance teams ensure every valve is perfect and meets international performance and safety standards.
We also offer short delivery and excellent after sales customer support. HUBLUXE ENGINEERING established itself as a leading manufacturer and exporters across US, Asia, Middle east, Africa, & Europe for angle bayonet valve.
Tank Bottom Angle Bayonet Valve technical specifications:

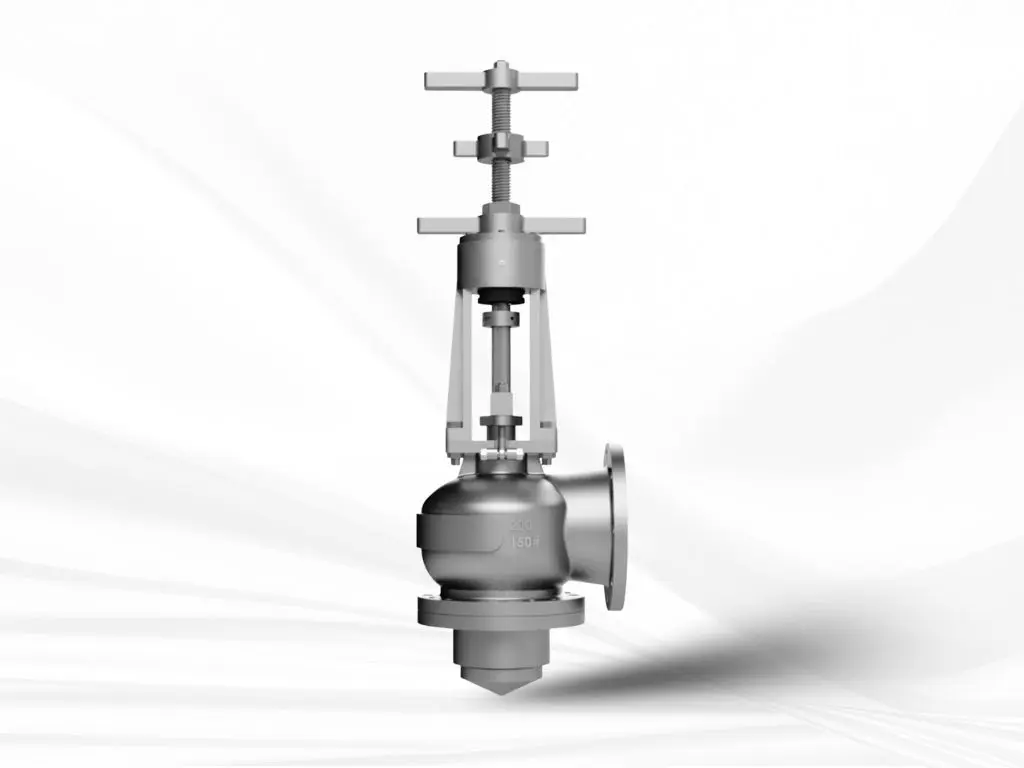

Product: ‘HUBLUXE’ Tank Bottom Angle Bayonet Valve
Size: DN50 – DN1000 (2” – 40”)
Body Material of construction (MOC): Body & Bonnet [ ASTM A216 Gr. WCB (Cast Steel), ASTM A351 Gr. CF8 (Stainless steel SS304), ASTM A351 Gr. CF8M (Stainless steel SS316), ASTM A351 CF3M (SS 316L)]
Pressure class: 150#, 300#, 600#
- End connections: Flanged End to ASME B16.5 150# / 300# / 600# (Flanges welded / fabricated to body), Screwed – Threaded End to ASME B16.25
- Testing standard: API 598
- Mode of operation: Manual handwheel / Pneumatic / Hydraulic / Electrical actuator

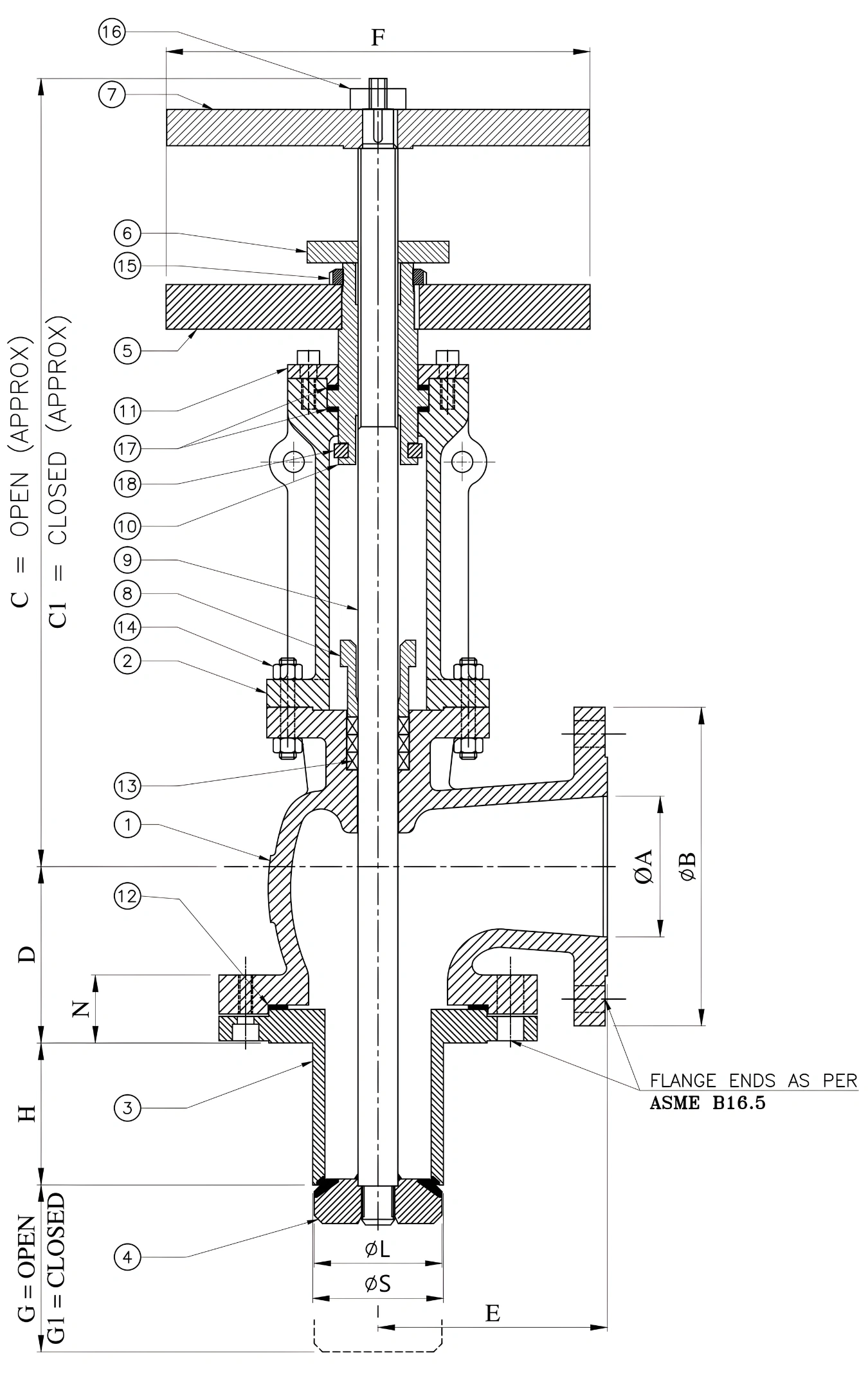

General Assembly drawing for Slurry angle bayonet valve (Manual-Hand lever operated):
| # | Part Name | Material Specification |
|---|---|---|
| 1 | Body | ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M |
| 2 | Bonnet | ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M |
| 3 | Seat Ring | AISI 1020 + Stellite 6 weld |
| 4 | Disc | SS410/SS420 + Stellite 6 weld |
| 5 | Bushing Handle | ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M |
| 6 | Jam Nut | ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M |
| 7 | Stem Handle | ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M |
| 8 | Gland Follower | ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M |
| 9 | Stem | AISI 410 / AISI 304 / AISI 316 |
| 10 | Yoke Bush | EN-19/ASTM A29 Gr.4140 |
Slurry angle bayonet valves applications:
- Mining and mineral processing
- Alumina and bauxite refining
- Slurry pipelines
- Chemical industries
- Pulp and paper plants
- Power generation and ash handling systems
FAQs (Frequently asked questions)
Find detailed answers to common questions about Slurry Angle Bayonet Valve in our Knowledge centre.
An angle bayonet is a type of specialised industrial valve designed specifically for handling corrosive, abrasive fluids often used in industries like mining, refining, chemical processing and power generation. Its design ensures durability, safety and adaptability making it preferred choice over standard valves.
