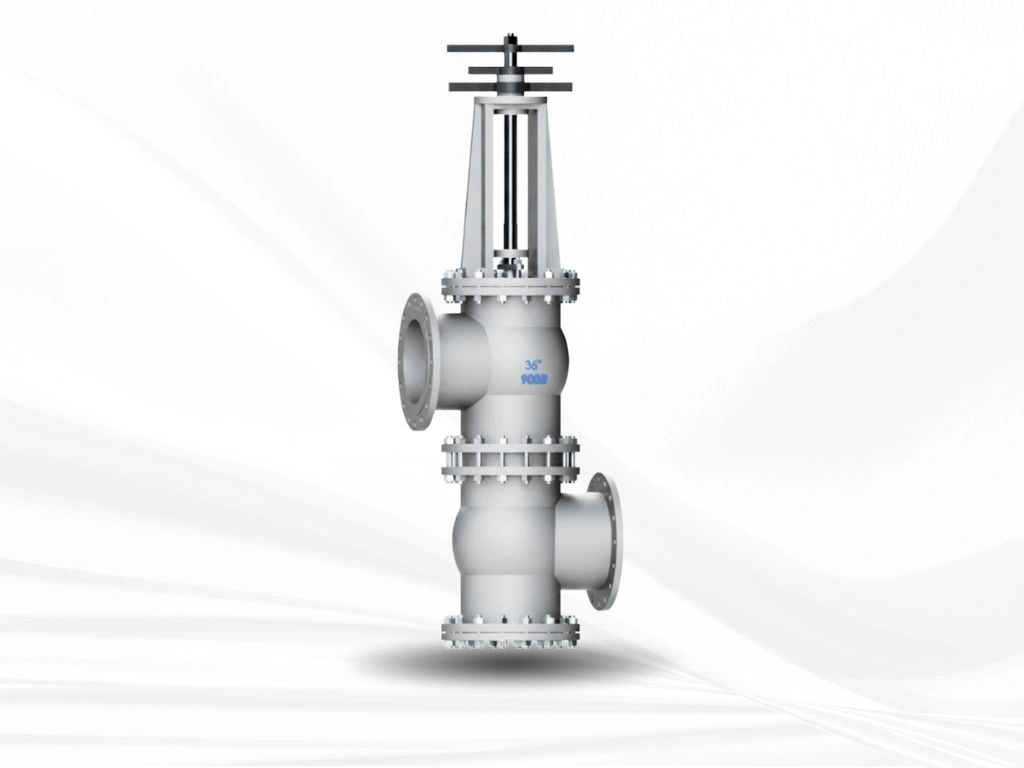

Slurry Angle Three Way Valve manufacturer
Key features:
- Designed & engineered for severe service in mining, alumina applications where erosion & scales are present
- The valve is three way configured allowing the valve to handle fluids with solid particles and slurries
- Valves designed are Heavy duty for body & flange thickness
- As a standard, Stellite 6 hardfacing provided on disc & seat
- Other Internal lining options are available to withstand erosion & corrosion
- Custom face to face dimensions is available as per requirement
- Hard facing on stem is available
- Design as per ASME B16.34 & testing as per API 598
Contact Hubluxe Engineering today for a competitive quote on Slurry Angle Three Way Valve.
Hubluxe is a trusted slurry angle three way valve manufacturer for industrial applications as per global ASME standards. The slurry angle three way valve is designed with a three way flow configurations, allowing the valve to handle fluids with solid particles and slurries. The three way slurry valve design enables controlled flow diversion. An angle type slurry valve reduces erosion in slurry pipelines.
Various coating material options are available to withstand wear and chemical corrosion. Specifically designed for severe service, our alumina slurry three way valve features Stellite hardfacing to withstand the most abrasive bauxite refining processes. These valves are widely used as slurry control valves for mining operations and in other industries such as wastewater treatment, pulp & paper industries, chemical processing, alumina refineries.
Committed to offer short delivery and excellent after sales customer support. Hubluxe is a trusted slurry angle three way valve manufacturer for industrial applications.
Slurry Angle Three Way Valve technical specifications:
Product: ‘HUBLUXE’ Slurry Angle Three Way Valve
Size: DN50 – DN1000 (2” – 40”)
Body Material of construction (MOC): Body & Bonnet [ ASTM A216 Gr. WCB (Cast Steel), ASTM A351 Gr. CF8 (Stainless steel SS304), ASTM A351 Gr. CF8M (Stainless steel SS316), ASTM A351 CF3M (SS 316L)]
Pressure class: 150#, 300#, 600#
End connections: Flanged End to ASME B16.5 150# / 300# / 600# (Flanges welded / fabricated to body), Screwed – Threaded End to ASME B16.25
Testing standard: API 598
Mode of operation: Manual handwheel / Pneumatic / Hydraulic / Electrical actuator
As a specialized slurry angle three way valve manufacturer, Hubluxe Engineering provides integrated solutions for complex diversion in high-solid pipelines.
Slurry Angle Three Way Valve applications:
- Alumina Refining
- Iron Ore Beneficiation
- Slurry Pipeline Systems
- Chemical Processing
- Sand & Mineral Handling
- Pulp and Paper Industry
FAQs (Frequently asked questions)
Find detailed answers to common questions about Three Way Slurry Valve in our Knowledge centre.
A slurry angle three way valve is designed with a three way flow configurations, allowing the valve to handle fluids with solid particles and slurries.
The valve is designed in such a way that it allows to divert the flow between two outlets, or mix the flow from two inlets into one outlet making it flexible routing in complex slurry applications.
