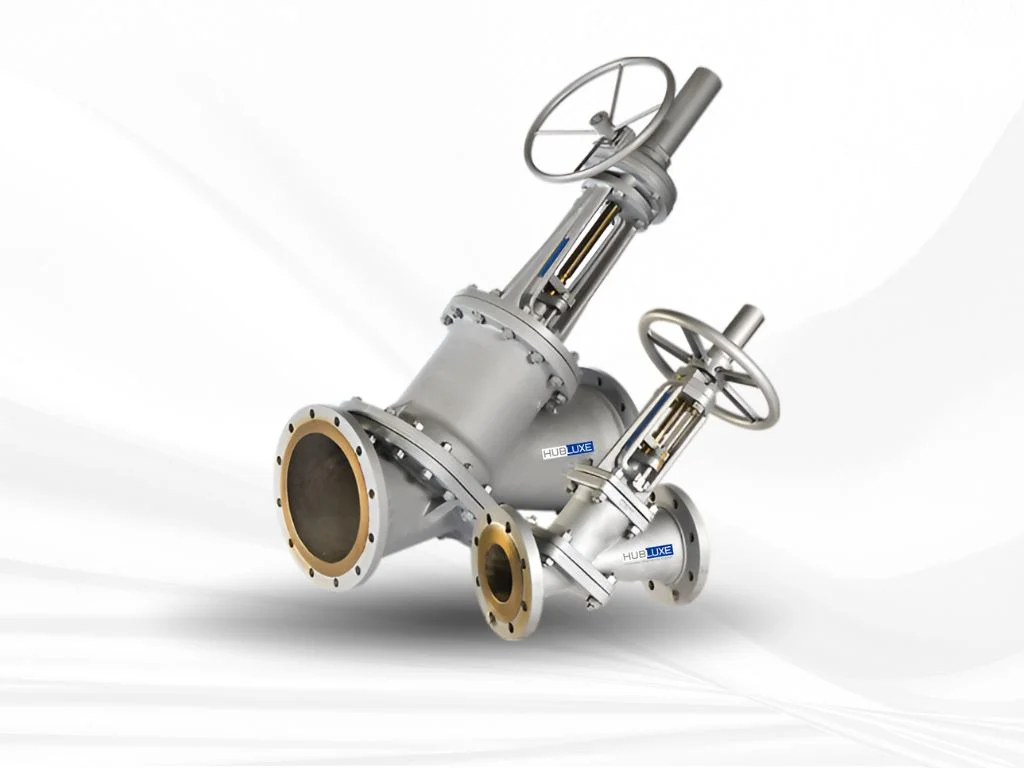

Slurry Angle Straight Through Valve manufacturer
Key features:
- Valves are designed as Heavy duty for body & flange thickness
- As a standard, Stellite 6 hardfacing provided on disc & seat
- Other Internal lining options are available to withstand viscous acids with suspended solids
- Custom face to face dimensions is available as per requirement
- Use of hard facing material options makes it durable to handle bauxite slurries
- Design as per ASME B16.34 & testing as per API 598
Contact Hubluxe Engineering today for a competitive quote.
High-Performance Slurry Angle Straight Through Valves:
Hubluxe Engineering is a specialized Slurry Angle Straight Through Valve manufacturer, providing robust isolation and control solutions for the most demanding industrial environments. Often referred to as a Y pattern slurry valve, this design is specifically engineered for handling abrasive slurries, corrosive fluids, and high-viscosity media in the mining and chemical processing industries.
Why Choose the Straight-Through Design?
The engineering behind the Slurry Angle Straight Through Valve (or Y-type isolation valve) combines the structural durability of a traditional angle valve with a streamlined flow path. This unique geometry ensures a full bore slurry valve performance that significantly minimizes internal turbulence and erosion. By allowing a nearly linear flow, these valves prevent sediment accumulation and scale build-up, which are common causes of failure in mineral processing pipelines.
Global Manufacturing and Export Excellence
As a premier mineral processing valve manufacturer, Hubluxe Engineering has established a global footprint as a leading manufacturer and exporter across the US, Asia, Middle East, Africa, and Europe. Our range includes the specialized angle bayonet valve, designed for rapid maintenance in high-pressure alumina refining and bauxite transport. We are committed to offering short delivery timelines and comprehensive technical support to ensure your abrasive slurry control valve maintains peak operational efficiency.
Technical specifications:
Product: ‘HUBLUXE’ Straight through angle slurry Valve
Size: DN50 – DN1000 (2” – 40”)
Body Material of construction (MOC): Body & Bonnet [ ASTM A216 Gr. WCB (Cast Steel), ASTM A351 Gr. CF8 (Stainless steel SS304), ASTM A351 Gr. CF8M (Stainless steel SS316), ASTM A351 CF3M (SS 316L)]
Pressure class: 150#, 300#, 600#
End connections: Flanged End to ASME B16.5 150# / 300# / 600# (Flanges welded / fabricated to body), Screwed – Threaded End to ASME B16.25
Testing standard: API 598
Mode of operation: Manual handwheel / Pneumatic / Hydraulic / Electrical actuator
Applications:
- Alumina Refining
- Iron Ore Beneficiation
- Slurry Pipeline Systems
- Chemical Processing
- Sand & Mineral Handling
- Pulp and Paper Industry
FAQs (Frequently asked questions)
Find detailed answers to common questions about Slurry Angle Straight Through Valve in our Knowledge centre.

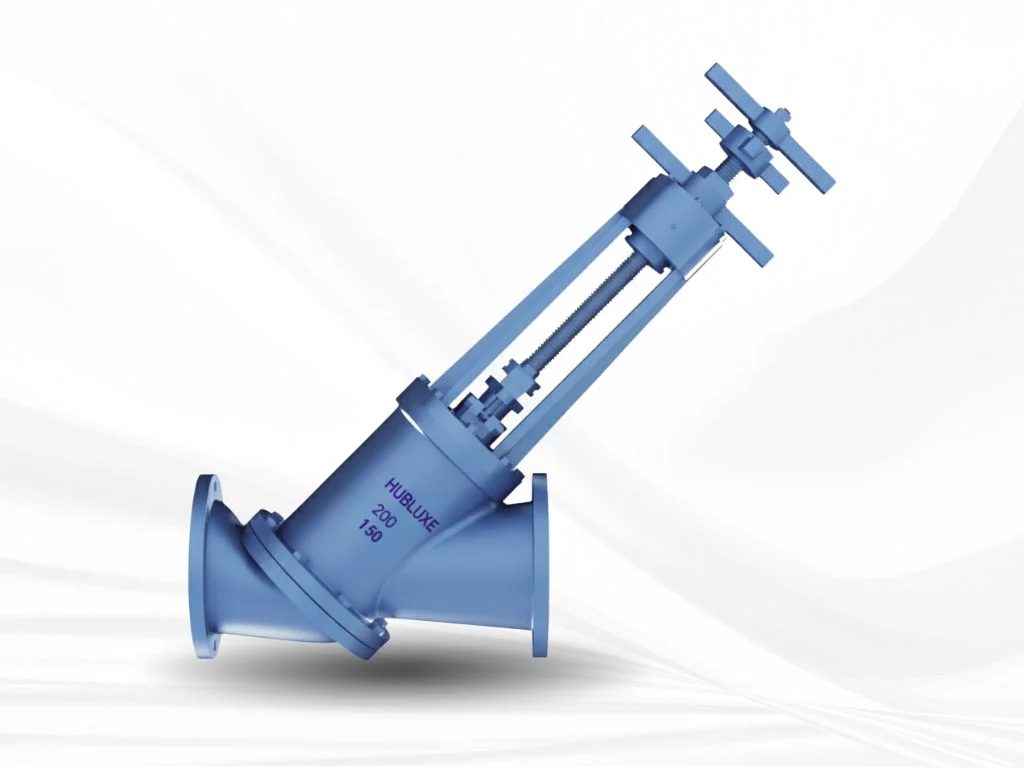

A slurry angle three way valve is designed with a three way flow configurations, allowing the valve to handle fluids with solid particles and slurries.
The valve is designed in such a way that it allows to divert the flow between two outlets, or mix the flow from two inlets into one outlet making it flexible routing in complex slurry applications.
