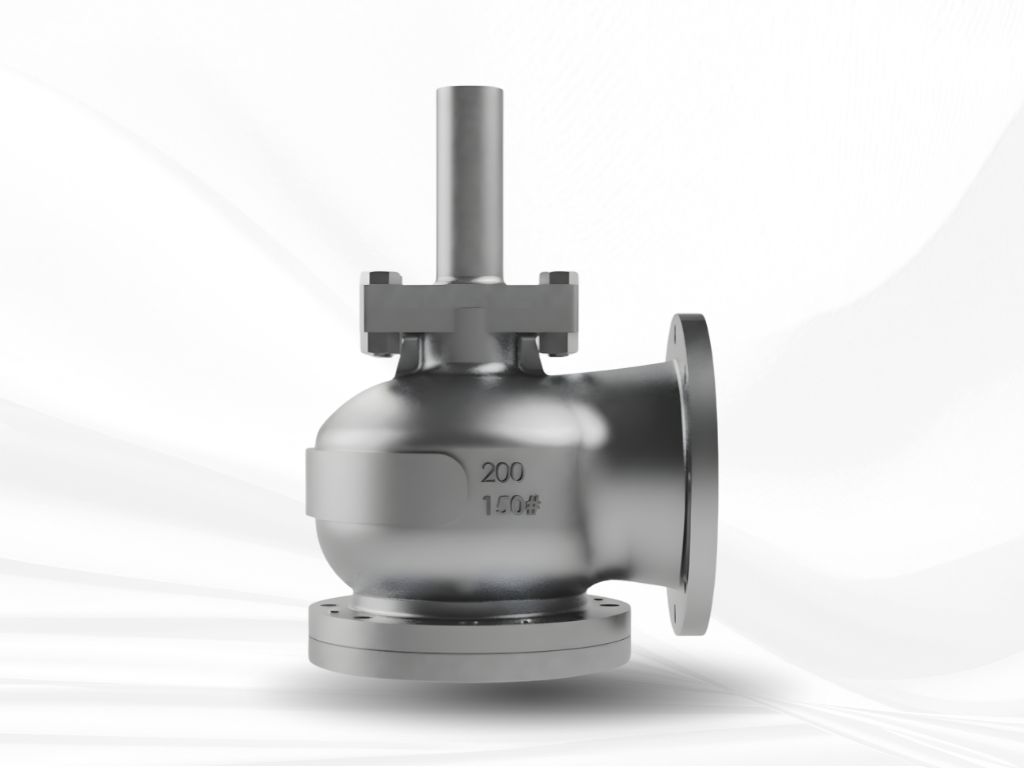

Slurry Angle Lift Check Valve Manufacturer for Abrasive Slurry Service
Key features:
- Designed & engineered for severe service in mining, alumina applications where erosion & scales are present
- Heavy duty design for body & flange thickness
- Stellite 6 hardfacing provided as a standard on disc & seat
- Other Internal lining options are available to combat erosion & corrosion
- Custom face to face dimensions is available as per requirement
- Hard facing on stem is available
- Design as per ASME B16.34 & testing as per API 598
Contact Hubluxe Engineering today for a competitive quote on Slurry angle lift check valve.
Slurry Angle Lift Check Valve Manufacturer for Abrasive Slurry Applications:
HUBLUXE ENGINEERING manufactures Slurry angle lift check valve as per global ASME standards. The valves are designed to withstand high corrosion and wear resistance. We also offer various coated materials to make it safe against wear or chemical corrosion of the valves.
Hubluxe Engineering is committed to offer short delivery and excellent after sales customer support. HUBLUXE ENGINEERING established itself as a leading manufacturer and exporters across US, Asia, Middle east, Africa, & Europe for angle bayonet valve.
Our Valves are manufactured for reliable backflow prevention in abrasive slurry handling systems. The angle body configuration and lift-type disc are designed to promote smooth flow while minimizing solids accumulation, making these valves suitable for heavy-duty slurry service.
Widely used in mining, alumina refineries, power plants, and mineral processing industries, HUBLUXE slurry check valve protect pumps and pipelines from reverse flow under harsh operating conditions. The robust construction and abrasion-resistant design help extend service life when handling high-solids, erosive media.
Angle Lift Check Valve technical specifications:
Product: ‘HUBLUXE’ Slurry Angle Lift Check Valve
Size: DN50 – DN1000 (2” – 40”)
Body Material of construction (MOC):
Body & Bonnet [ ASTM A216 Gr. WCB (Cast Steel), ASTM A351 Gr. CF8 (Stainless steel SS304), ASTM A351 Gr. CF8M (Stainless steel SS316), ASTM A351 CF3M (SS 316L)]
Pressure class: 150#, 300#, 600#
- End connections: Flanged End to ASME B16.5 150# / 300# / 600# (Flanges welded / fabricated to body), Screwed – Threaded End to ASME B16.25
- Testing standard: API 598
- Mode of operation: Manual handwheel / Pneumatic / Hydraulic / Electrical actuator
Slurry angle lift check valves applications:
- Mining and mineral processing
- Alumina and bauxite refining
- Slurry pipelines
- Chemical industries
- Pulp and paper plants
- Power generation and ash handling systems
FAQs (Frequently asked questions)
Find detailed answers to common questions about Slurry Angle Lift Check Valve in our Knowledge centre.
A slurry angle lift check valve is a type of valve used for slurry applications to prevent the backflow to ensure efficient operation. The working principle is same as that of standard check valve.
However, the slurry angle lift check valve is specifically engineered for handling high slurry contents, abrasive fluids with a modification in seating angle and wear resistance materials to handle harsher conditions.
