Lined Ball Valve Manufacturer (PFA / FEP / PVDF / PTFE)

5/5 - (1 vote)

Key features:

  • Bore size: Hubluxe provides Lined Ball valves in both Full Port (for maximum flow coefficient Cv) and Reduced Port designs to match specific piping requirements

  • Ball configurations: Our Reduced Port valves feature a proven Floating Ball design, while our Full Port Lined Ball Valves utilize a Ball & Stem Integral design, eliminating hysteresis and ensuring precise control

  • Lined ball valves are offered in PTFE / PFA / FEP / PVDF grade with thickness of lining in between 3.5 mm to 6 mm

  • Superior Lining Technology: The PFA / FEP / PVDF lining is mechanically locked into the metal body using dovetail grooves. This design prevents liner collapse, making our valves fully suitable for high vacuum applications as well as high-pressure services

  • Use of Virgin PTFE, FEP, PFA ensure all lined ball valves to withstand temperature from -20 C to +240C. Anti-static lining available on request

  • Certified Quality: HUBLUXE is an ISO 9001:2015 certified manufacturer. All Lined Ball Valves (Full & Reduced Port) are 100% tested before despatch

Don’t let corrosion compromise your plant. Contact us today for Lined Ball Valves (PTFE / PFA / FEP / PVDF) solution.

Send Enquiry

Hubluxe’s Lined Ball Valves are designed to ensure safe & reliable control for corrosive and hazardous fluids. The various lining options such as PTFE / PFA / FEP / PVDF provides superior chemical resistance for corrosive media.

It is an ideal solution for corrosion fluids, chemical, pharmaceuticals, food & beverages, water treatment & semiconductor manufacturing.

Lined Ball Valve (PFA / FEP / PVDF / PTFE) technical specifications:

  • Product: ‘HUBLUXE’ Lined Ball Valves – PTFE, PFA, FEP & PVDF

  • Size: DN15 to DN300 (1/2” to 12”)

  • Valve (MOC): Cast Steel, Stainless steel (SS304 / SS316)

  • Internal Lining material: PTFE, PFA, FEP & PVDF (with 3 MM thickness)

  • Mode of operation: Hand Lever operated / Pneumatic Actuator operated

  • Design & Manufacturing standard: BS 5351 / ISO 17292

  • Testing & Inspection standard: API 598 / ISO 12266

  • Face to face standard: ANSI B 16.10

  • End connections:  Flange End (as per ANSI B16.5; 150# RF)

  • Standard Resin Specification: FEP: ASTM D 2116 / PFA: ASTM D 3307

  • 150# Hydro Test Pressure details:

    • Hydro Body: 51 bar[225 psi]
    • Hydro Seat: 10.34 bar [150 psi]
    • Working Pressure: 89 bar[100 psi]

Lined Ball Valve (PFA / FEP / PVDF / PTFE) Applications:

  • Pharmaceuticals
  • Speciality Chemicals
  • Food & Beverages
  • Pulp & Paper
  • HVAC
  • Water treatment
  • Semiconductors
  • Energy & Power
  • Petrochemicals

Different configuration options:

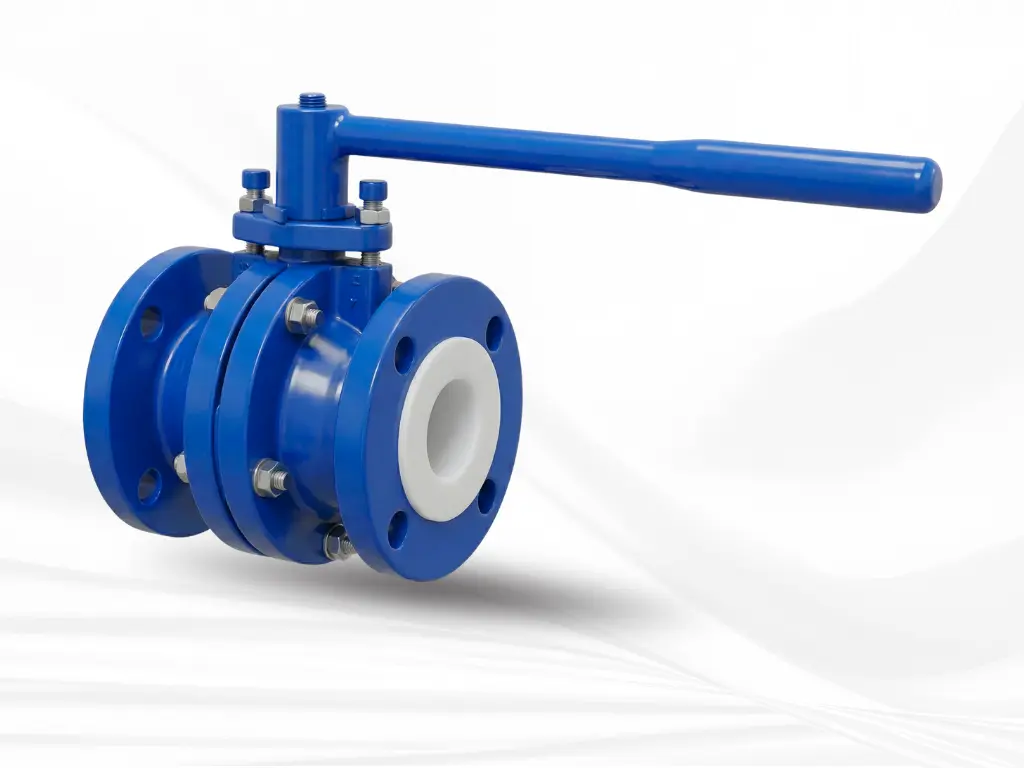

PFA lined ball valve flanged end lever operated design for concentrated acid and corrosive slurry service

Technical data:

  • Size: DN25 – DN80 (1” to 3”)
  • Body Material: Ductile Iron, Cast Steel (WCB), Stainless steel (SS304 / SS316)
  • Ball with stem: Stainless Steel (SS304 / SS316) with FEP / PFA lined
  • Lining Material: PTFE / FEP / PFA / PVDF (thickness: 3 mm to 5 mm)
  • Spark test: 15 KVA
  • Leak Test: API 598
  • Temperature: FEP – Max 180° Deg. C, PFA – Max 200° Deg. C
  • Mode of operation: Lever operated
Send Enquiry

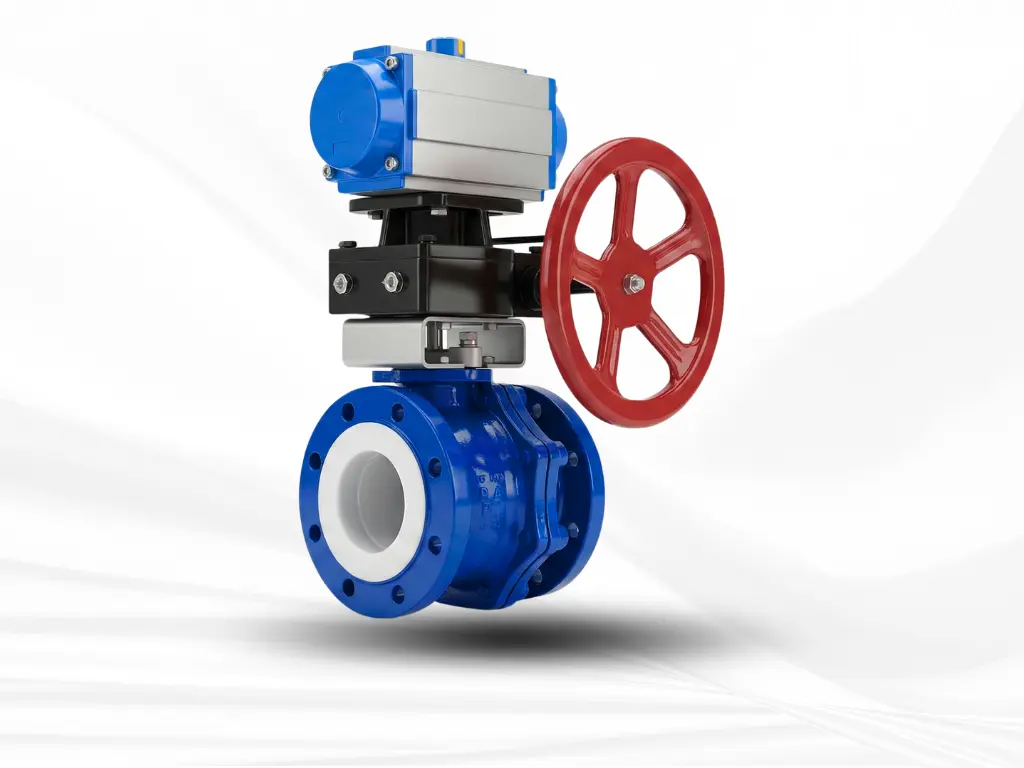

Pneumatic lined ball valve with rotary actuator and manual override for automated chemical dosing plants

Technical data:

  • Size: DN15 – DN150 (1/2” to 6”)
  • Body Material: Ductile Iron, Cast Steel (WCB), Stainless steel (SS304 / SS316)
  • Ball with stem: Stainless Steel (SS304 / SS316) with FEP / PFA lined
  • Lining Material: PTFE / FEP / PFA / PVDF (thickness: 3 mm to 5 mm)
  • Spark test: 15 KVDC
  • Leak Test: API 598
  • Leakage class: Class VI
  • Pressure class: Up to 7 bar
  • Design & Manufacturing standard: BS-5351
  • Flange Drilling: ASME B16.5, 150#
  • Face to face dimension: ANSI B16.10
  • Temperature: FEP – Max 180° Deg. C, PFA – Max 200° Deg. C
  • Mode of operation: Pneumatic operated with optional accessories
Send Enquiry
Lined ball valve gear operated PFA conductive lining full port design for large diameter chemical pipelines

Technical data:

  • Size: DN15 – DN150 (1/2” to 6”)
  • Body Material: Ductile Iron, Cast Steel (WCB), Stainless steel (SS304 / SS316)
  • Ball with stem: Stainless Steel (SS304 / SS316) with FEP / PFA lined
  • Lining Material: PTFE / FEP / PFA / PVDF (thickness: 3 mm to 5 mm)
  • Spark test: 15 KVDC
  • Leak Test: API 598
  • Leakage class: Class VI
  • Pressure class: Up to 7 bar
  • Design & Manufacturing standard: BS-5351
  • Flange Drilling: ASME B16.5, 150#
  • Face to face dimension: ANSI B16.10
  • Temperature: FEP – Max 180° Deg. C, PFA – Max 200° Deg. C
  • Mode of operation: Gear operated
Send Enquiry

Explore Our Other Engineered Valves

Slide Gate valve
Double Disc Gate Valve
Goggle Valve
Angle Slurry Valve
Butterfly Damper
Forged Ball Valve
Knife Edge Gate Valve
Rotary Airlock Valve (RAV)
Safety Relief Valve
Y Type Strainer

FAQs (Frequently asked questions)

Find detailed answers to common questions about Lined valves in our Knowledge centre.

What is the difference between PFA and FEP lined ball valves?

PFA (Perfluoro alkoxy) offers higher thermal stability (up to 2600 Deg. C) and better permeation resistance compared to FEP (1500 Deg. C). PFA is preferred for severe chemical services, while FEP is a cost-effective solution for moderate temperatures
