High Performance Double Offset Butterfly Valve Manufacturer (API 607)

5/5 - (1 vote)

Key features:

  • Double offset butterfly valve (also called as a high-performance butterfly valve) is used in high pressure & temperature service where centric butterfly valve reaches its performance limits

  • Bubble tight shutoff – the disc (double offset construction) provides excellent shutoff, longer seat life & smooth operation

  • Heavy-duty bearings with well supported shaft ensure perfectly aligned seat and disc, delivering smooth and trouble-free operation

  • Anti blow out proof stem with bidirectional design

  • End connection available in Wafer, Lugged and Double Flanged design

Choose Hubluxe Engineering  – HPBV Valve Manufacturer for your critical application. Request a quote today.

Send Enquiry

High-Performance Butterfly valve for Critical Process Lines:

At Hubluxe Engineering, we specialize in manufacturing of High-performance flow control solutions, including Double Offset Butterfly Valve often known as Double Eccentric Butterfly Valve. The valve is engineered for durability and precision to serve industries requiring high pressure & temperature requirements.

Whether you require Lug type or Wafer type configurations, Hubluxe ensures every valve meets stringent API 609 category B standards. Our high-performance butterfly valve is preferred choice for engineers across industries like Oil & gas, Power generation, water treatment, Pharmaceuticals, Sugar mills, paper & pulp, metal & mining etc.

At Hubluxe Engineering, we don’t just sell valves; we engineer reliability.

Technical specifications:

  • Product: ‘HUBLUXE’ Double eccentric butterfly valve

  • Size Range: DN50 – DN1000 (2” – 40”)

  • Pressure rating: PN 10 / PN 16 / PN 20 / PN 40 / 150#, 300#

  • Body design: Wafer / Lugged / Flange

  • Body Materials: Cast Iron (CI), Ductile Iron (DI), WCB, SS304 / SS316 / Aluminium / WC9

  • Disc Materials: Ductile Iron, WCB, SS304, SS316, Al-Bronze, WC9

  • Seat / Liner options: Nitrile (NBR), EPDM, PTFE (Teflon), Silicon, Viton (FKM), Hypalon

  • Operation: Gear operated, Pneumatic / Electric Actuator (with optional accessories)

  • Face to face standard: BS EN593 / ISO 5752 / API 609

  • Top flange drilling: ASME B16.5; 150#

  • Flange standard: ASME / ANSI B16.5 Class 150# & 300#

  • Inspection & testing standard: API 598 / BSEN 12266-1 / IS 13095

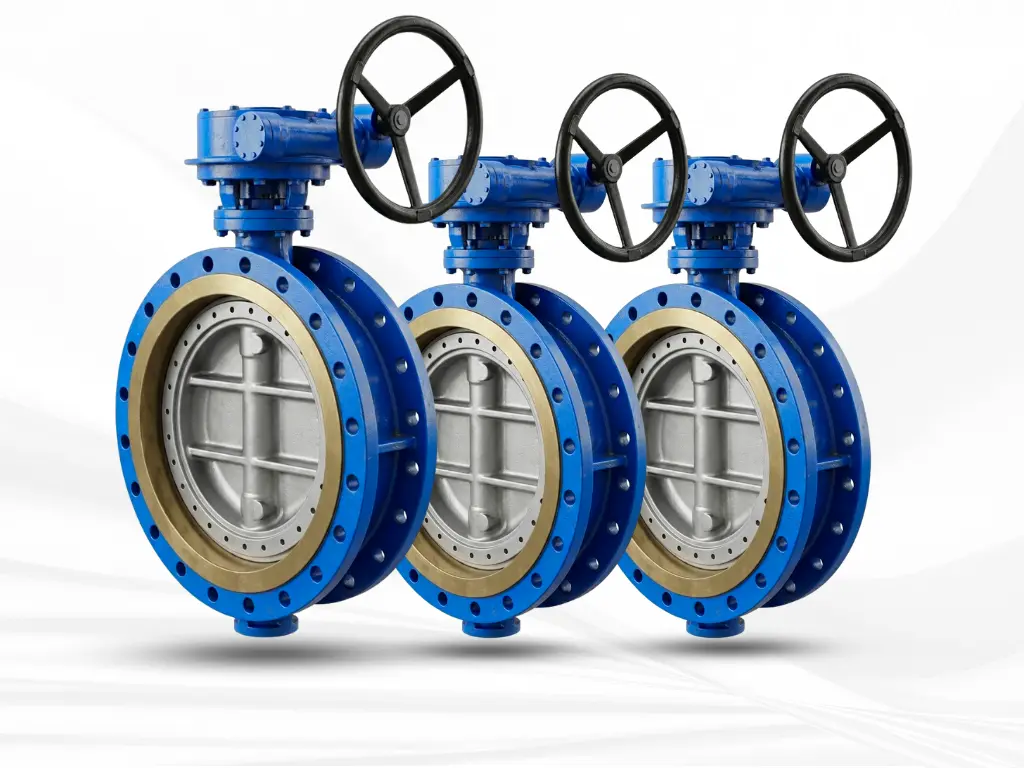

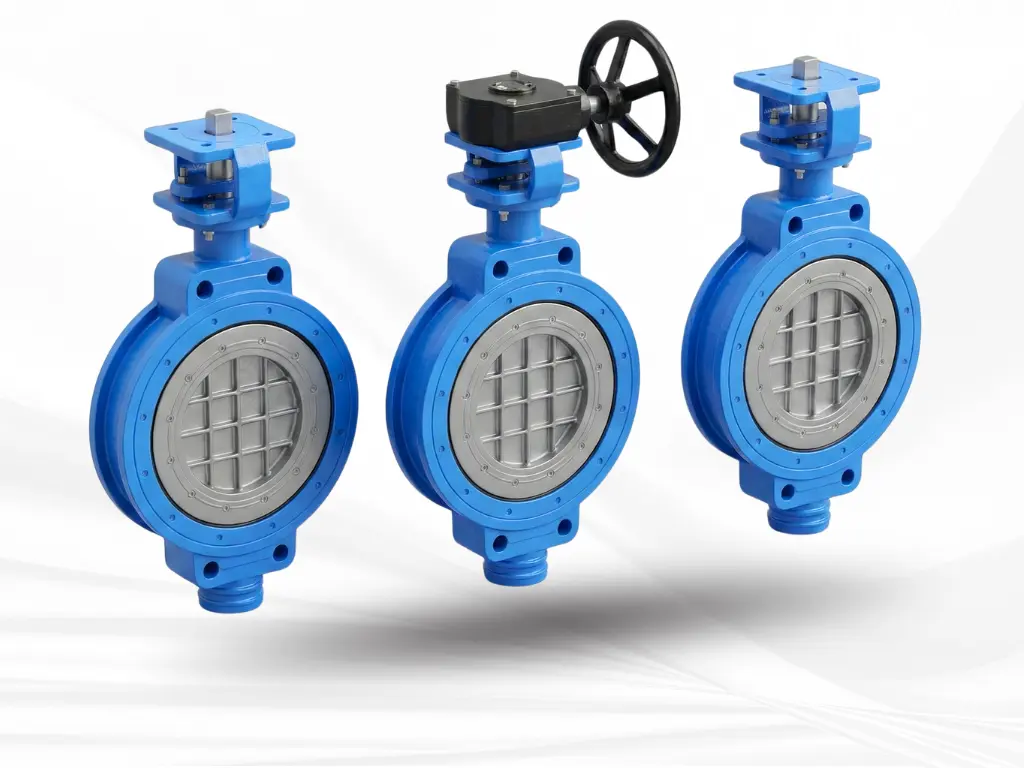

Images of Double Offset Butterfly Valves:

Double Offset Butterfly Valveapplications:

  • Oil & gas
  • Water & wastewater treatment
  • Power generation
  • Marine & offshore
  • LNG
  • HVAC & utilities
  • Steel & Mining
  • Sugar Mills
  • Food & Beverages
  • Pharmaceuticals

Explore Our Other Engineered Valves

Slide Gate valve
Double Disc Gate Valve
Goggle Valve
Angle Slurry Valve
Butterfly Damper
Forged Ball Valve
Knife Edge Gate Valve
Rotary Airlock Valve (RAV)
Safety Relief Valve
Y Type Strainer

FAQs (Frequently asked questions)

Find detailed answers to common questions about Double Offset Butterfly Valve  in our Knowledge centre.

What is a double offset (double eccentric) butterfly valve?

A double offset valve is a unique design that uses two offsets between the shaft/disc and body centrelines to reduce friction, increase durability, improving shutoff consistency. Widely used for high temperature & pressure line applications.

What are the benefits of using double eccentric butterfly valve?

Double eccentric butterfly valves have many advantages over traditional butterfly valve. The valve is known for its superior sealing, Low operational torque, reduced friction, wear & tear, higher flow capacity and are compact & lightweight designed.
