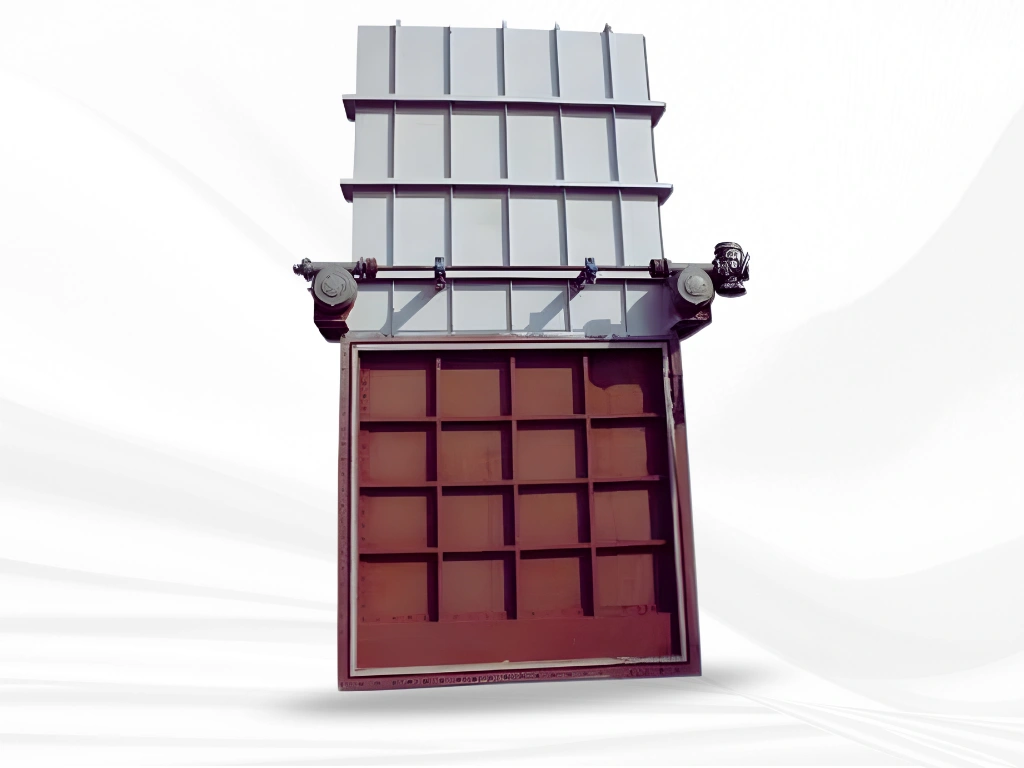

Guillotine Dampers for 100% Man-Safe Gas Isolation
Key features:
- 100% isolation with seal air solution by using enclosure box type
- Heavy duty gas tight shut off design
- Low pressure drops with robust rack & pinion design
- Reinforced blade construction to minimise deflection, stress & protection from weather
- Superior sealing system that includes metal to metal, elastic seat system, tadpole seals (99% efficiency)
- High safety factors in actuation by provisioning 3X the calculated dead load + 2 times live load force
- Explosion-Proof Electric Actuators – Equipped with heavy-duty gearboxes (e.g., 48:1 ratio) for safe operation in hazardous environments.
Contact Hubluxe Engineering today for a competitive quote on Guillotine Damper.
HUBLUXE ENGINEERING distinguishes itself by offering engineered and heavy-duty Guillotine Damper. This makes their guillotine dampers not just reliable but also adaptable to the most demanding industrial environments. Pressure drop is low across the damper when it if fully open.
In Flue Gas Desulfurization (FGD) systems and Gas Turbine exhausts, partial isolation is not an option. When maintenance crews need to enter a duct, they require absolute certainty that toxic gases cannot bypass the valve. Hubluxe Engineering’s Guillotine Dampers provide 100% positive isolation.
Our damper features a proven rack & pinion design, a robust design that outperforms outdated chain-driven systems. It delivers unmatched reliability while remaining cost-competitive.
The technical specifications for Guillotine Damper:
Product: ‘HUBLUXE’ Guillotine Damper
Size: 300 mm to 6000 mm (higher size on request)
Shape: Round (preferable), Square, Rectangular
Body Material of construction (MOC): MS fabricated (IS 2062 GR. B) / SS 304 / SS 316 (other materials on request)
Design: Customisable as per requirements
End connections: Flanged end / weld able end / wafer end

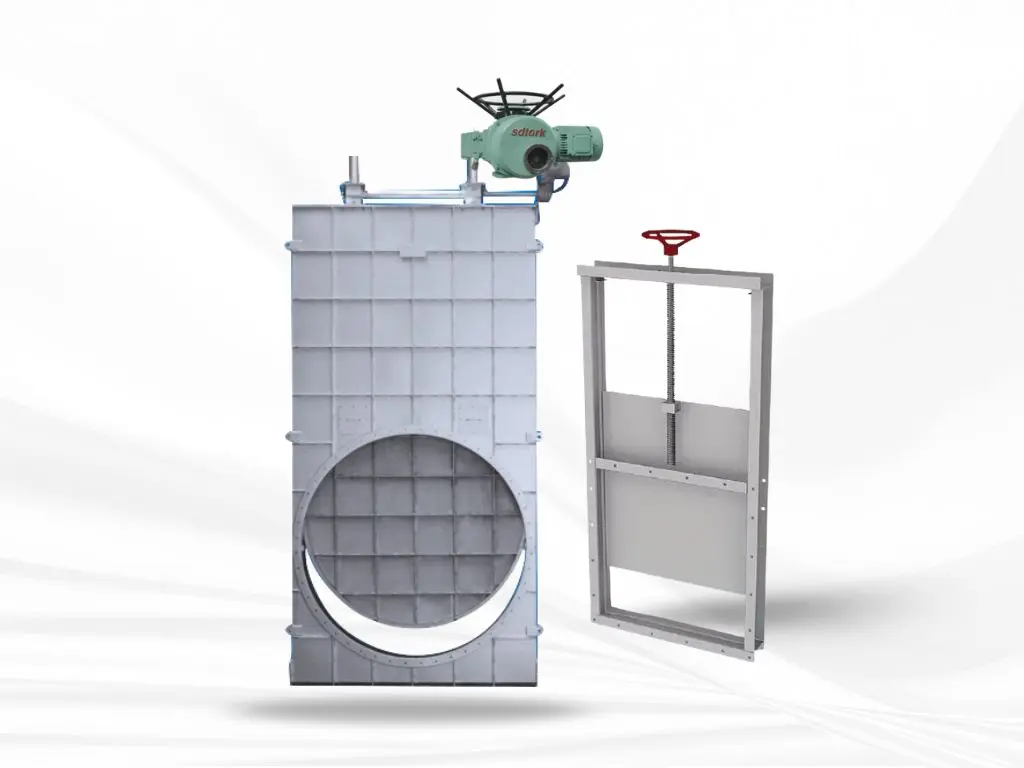

Operation: Manual, Pneumatic & Electric actuator operation
Temperature suitability: -30 deg. C to 1000 Deg. C
Pressure: ± 1 bar
Media: Flue gases, air etc
Sealing efficiency: 97% to 99% and 100% with seal air
Leakage class: II, III & IV CAN BE OFFERED AS PER ASME AG-1
Standard construction features of HUBLUXE make Guilltoine Damper:
MAIN FEATURE:
Guillotine dampers are primarily used in a robust, gas-tight shut-off ducts. Their compact design fits in tight spaces, maintains efficient airflow when fully open, and withstands pressure drops. Available in various configuration options in manual, Pneumatic, Electrical actuated.
BLADE DESIGN:
To minimise the deflection & stress, the damper blade is reinforced. Their weatherproof design prevents gas from leaking into atmosphere. We design blades in various types such as simple blades, structural blades, thermally compensating blades and profiled blades. Our design provides maximum resistance to heat stress, corrosion, metal fatigue and distortion. Application with high pressure or high temperature, an inspection port and view port for high dust loading as well as insulated blades where heat retention or protections from thermal distortion are recommended.
SEALING SYSTEMS:
The dampers are equipped with excellent sealing mechanism where blades are designed with metal to metal or elastic seating systems. Guillotine dampers can be manufactured with simple tadpole seal which can achieve 99% sealing efficiency on cross section. 100% sealing efficiency designs are also possible with fully enclosed bonnets and pressurised seals.
DRIVE SYSTEMS:
Our guillotine damper is a proven and comes with robust rack & pinion design, as compared to older designs such as chains. It is far superior in terms of reliability at the same time its cost effective too. We have wide range of drive options from simple mounted to pneumatic actuation to heavy-duty electrical actuator with safety factors.
The HUBLUXE make Guillotine Damper is suitable for a wide range of industrial applications: Key functions includes: isolation, control & leakage prevention
- Shut-off air & gas flow in duct
- Power plants
- Cement plants
- Steel industry
- Controlling airflow in boilers, chimneys and exhaust systems
- FGD (Flue gas desulfurization) systems
- Waste incinerators
- Petrochemical and refineries
- HVAC systems
FAQs (Frequently asked questions)
Find detailed answers to common questions about Guillotine Damper in our Knowledge centre.
A guillotine damper is a type of heavy duty industrial damper designed to isolate the airflow in ducting ensuring safe zone for inspection, maintenance or for safety purpose in case flue gases.
