Forged Steel Ball Valves (A105 / F316) for High Pressure
Key features:
Material & construction: Forged from Carbon steel, stainless steel or alloy steel for superior strength
Durability & Performance: Designed to perform at high temperature & pressure class (up to 2500#)
Design capability: Anti-static, blowout-proof stem, Fire safe design with full bore and reduced bore options
Applications: Meant for high pressure & temperature in Oil & gas, Petrochemicals, Energy & Power, Refineries, Chemical processing plants, Industrial process
Contact Hubluxe Engineering today for a competitive quote on Forged Steel Ball valves.
Hubluxe Engineering’s Forged Steel Ball Valves are machined from solid forged bars (A105, F304, F316), ensuring a dense, uniform grain structure with Zero Porosity. The Valves manufactured by HUBLUXE are designed for reliable isolation in high-pressure industrial piping systems.
These Valves are preferred in critical applications due to their compact construction and superior mechanical strength. HUBLUXE Forged Steel Ball Valves offer dependable shut-off performance in oil & gas, power, and process industries.

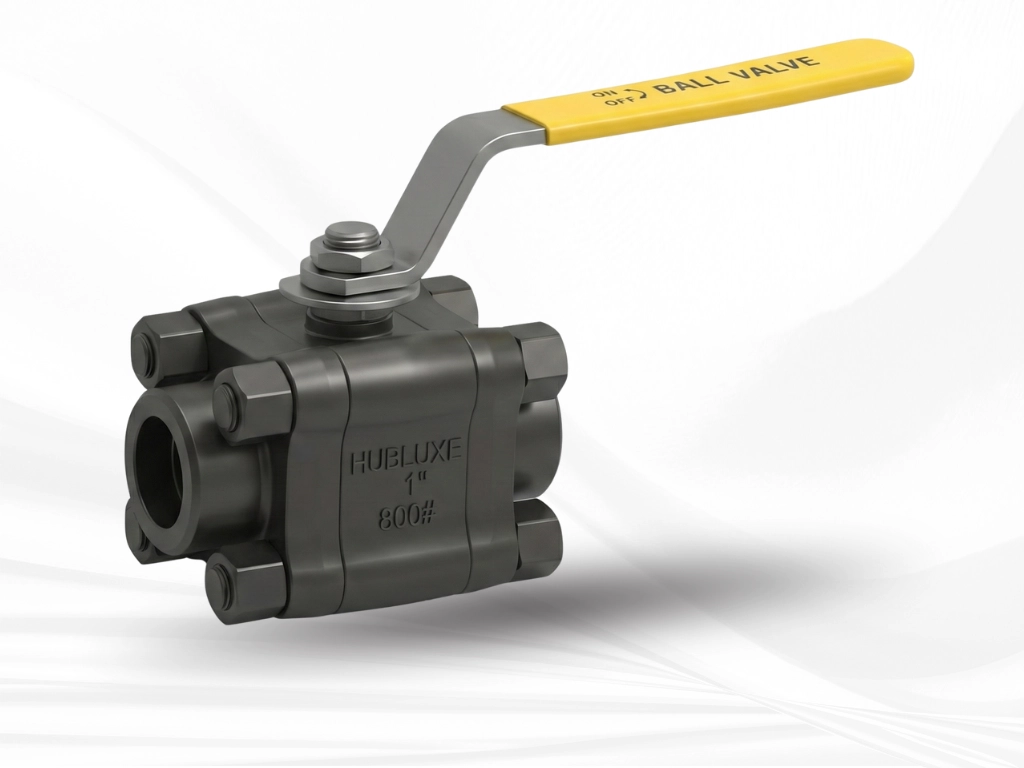

Versatile End Connections Our Ball Valves are available in Socket Weld (SW), Screwed (NPT/BSP), and Butt Weld (BW) configurations.
Technical specifications:
Product: ‘HUBLUXE’ Forged Steel Ball Valve
Size: 15 mm – 50 mm (1/2” – 2”)
Material of construction (MOC): Carbon Steel – A105, A105N / Stainless steel – F304, F304L, F316, F316L / Duplex steel – F51, F53, F55

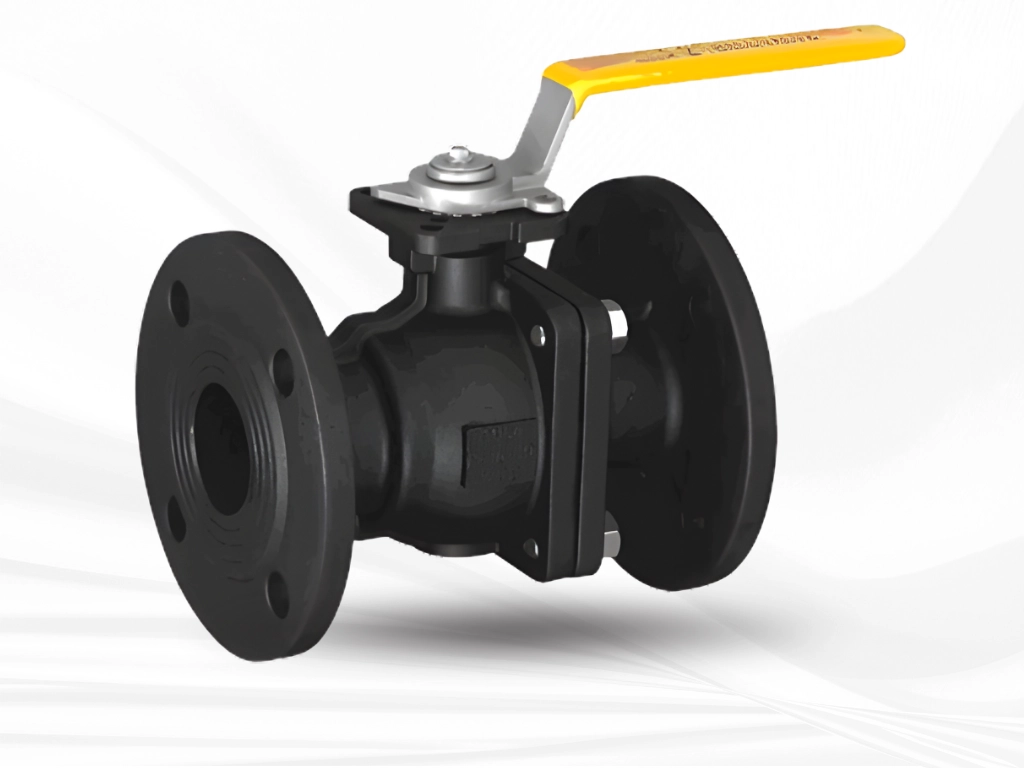

End connection: Screwed End to BSP-F (also in NPT-F), Socket Weld End, Flange end
Pressure Class rating: ANSI 600#, 800#
Design Standard: BS EN ISO 17292 / ASME B16.34 / BS 5351
Inspection & Testing standards: BS EN ISO 12266-1 (BS 6755-1) / API 598

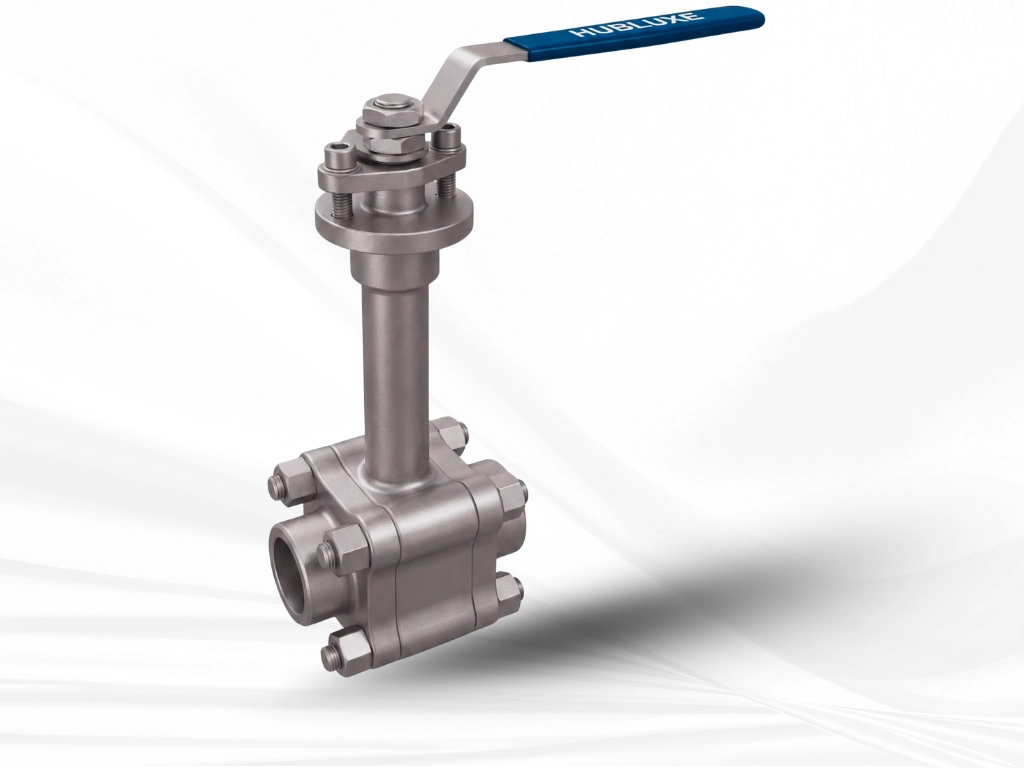

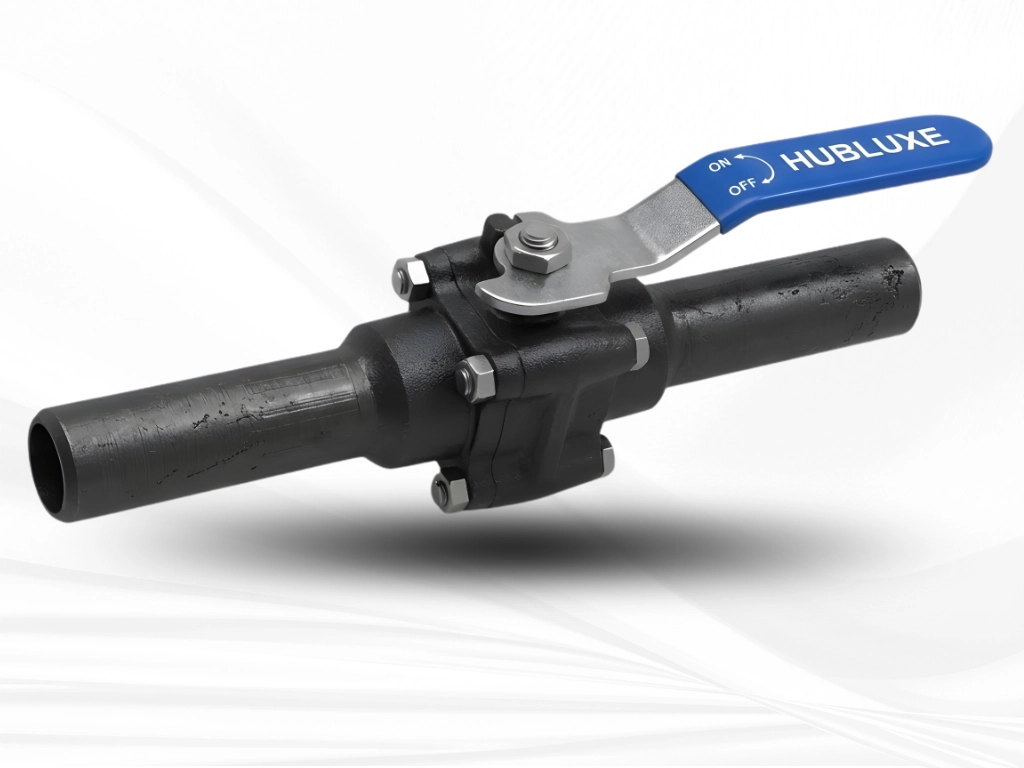

Operation: Manual – Hand lever operated, extended stem, Pneumatic or Electrical actuator option, extended pipe & extended stem
HUBLUXE is a forged ball valve manufacturer supplying engineered solutions for demanding industrial applications. The A105 forged ball valve option is widely used for carbon steel piping systems operating under high pressure. An F316 forged ball valve is selected for corrosive services requiring stainless steel construction and long service life.
Each high pressure forged ball valve is engineered to withstand severe pressure and temperature conditions. The two piece forged ball valve design allows easy maintenance while ensuring robust sealing performance.
3 Piece Forged Ball Valve diagram
| # | Parts | Materials |
|---|---|---|
| 1 | Body | ASTM A105 / F304 / F316 (other grades on request) |
| 2 | End piece | ASTM A105 / F304 / F316 (other grades on request) |
| 3 | Seat ring | CFT / PTFT |
| 4 | Ball | A351 Gr. CF8 / CF8M / A182 Gr. F304 / F316 /CF3 / CF3M |
| 5 | Stem | ASTM A276 Gr. F304 / F316 |
| 6 | O Ring | CFT / PTFT |
| 7 | Hex Bolt | ASTM A193 Gr. B7 / B8 / B8M |
| 8 | Gland Packing | CFT / PTFT |
| 9 | Handle | Carbon Steel + Zinc plated |
| 10 | Locking washer | ASTM A276 Gr. F304 / F316 |
Applications:
- Nuclear & thermal power generation
- Cement Industries
- Iron & Steel Mills
- Water treatment
- Oil & Gas Industries
- Marine Industries
- Pharmaceutical industries
- Paper & pulp industries
- Petrochemcial Industries
- Thermal Power Plants
FAQs (Frequently asked questions)
Find detailed answers to common questions about Forged Ball valves in our Knowledge centre.
It is a type of quarter turn ball valve manufactured by heating the steel under extreme temperature and then shaping it by extreme mechanical pressure. This process eliminates the defects which are commonly associated with casting valves such porosity, sand inclusions, and shrinking.
These valves are widely used in oil & gas, petrochemical, and power generation industries where safety and reliability are non-negotiable.
