Chain Driven Rotary Airlock Valve (Side Entry / Drop Through)
Key features:
- Custom RAV design: RAV can be customised as per your requirements to fit in the line
- Material of construction (MOC): Cast iron, MS, SS304 / SS316 depending on application
- Size range: 100 mm to 600 mm (Higher sizes on request)
- Drive: Gearbox → Motor → Chain & Sprocket → Rotor Shaft
- Quality build: Heavy duty RAV for abrasive applications
- Speed control option: RPM is adjustable through gearbox & sprocket size changes
- Rotor type: Wide selections of rotor options as per application needs
Contact Hubluxe Engineering today for a competitive quote on Chain Drive Rotary Airlock Valve (RAV).
Chain Drive Rotary Airlock Valve (RAV) & Feeder technical specifications:
Product: ‘HUBLUXE’ Chain Drive Rotary Airlock Valve
Size: 100 MM to 600 MM (4” to 24”)- (Higher sizes on request)
Body flange option: Round, Square, Rectangular (depending on the customer’s requirement)
Rotor option: Open fixed bladed rotor, scalloped rotor, closed rotor, Open adjustable bladed rotor (depending on the application type)
Material of construction: Cast Iron, Cast Steel, Cast SS 304, 316, 316L (special material on request)
Drive options: Coupled Gearbox Motor, Chain & Sprocket arrangement
Application: In plastic industry – Feeding pellets to extruders, In Pharma industry – feeding powder in tablet making process, in cement industry – feeding fly ash, limestone into pneumatic lines etc.
Industries: Food Industries, Process Industries, Pharma, Chemicals, Plastic, Cement industries
Our Chain Drive Rotary Airlock Valves are designed for efficient materials handling, air tight construction, easy maintenance and gland packed sealed shafts. We can also provide RAV (Rotary airlock valve) with chrome plated along with optional air purging systems for abrasive materials.
We have wide range of rotor blade options available in fixed blade and adjustable or replaceable blade type for RAV (Rotary airlock valve).
As a specialized chain driven rotary airlock valve manufacturer, Hubluxe Engineering provides heavy-duty solutions for the most demanding bulk material handling RAV applications. Unlike direct-drive models, our heavy duty rotary airlock valve utilizes a precision chain and sprocket mechanism. This allows for high torque transmission and makes it a preferred side entry rotary airlock valve or drop through rotary airlock valve for abrasive process lines.
The Chain drive rotary airlock valve consist of chain and sprocket mechanism which is then connected to both rotor and to an external power drive source such as electric motor & gearbox.
The motor drives the chain to rotate the rotor vanes & as the rotor turns, it carries the materials to the bottom of RAV to drop it out. To minimise the air leakage, a tight clearance is provided between rotor and housing.
The main function is to transfer the bulk materials at controlled rate from a hopper (e.g. a silo) into the process stream.
It is most commonly used in industries handling powder, cements, pellets granules, chemicals etc. The Chain Drive Rotary Airlock Valve is one of the traditional heavy-duty setup RAVs used for bulk material handling.
All the Rotary Airlock Valve is engineered for handling abrasive materials better, easy maintenance, high torque transmission & easy to maintain.

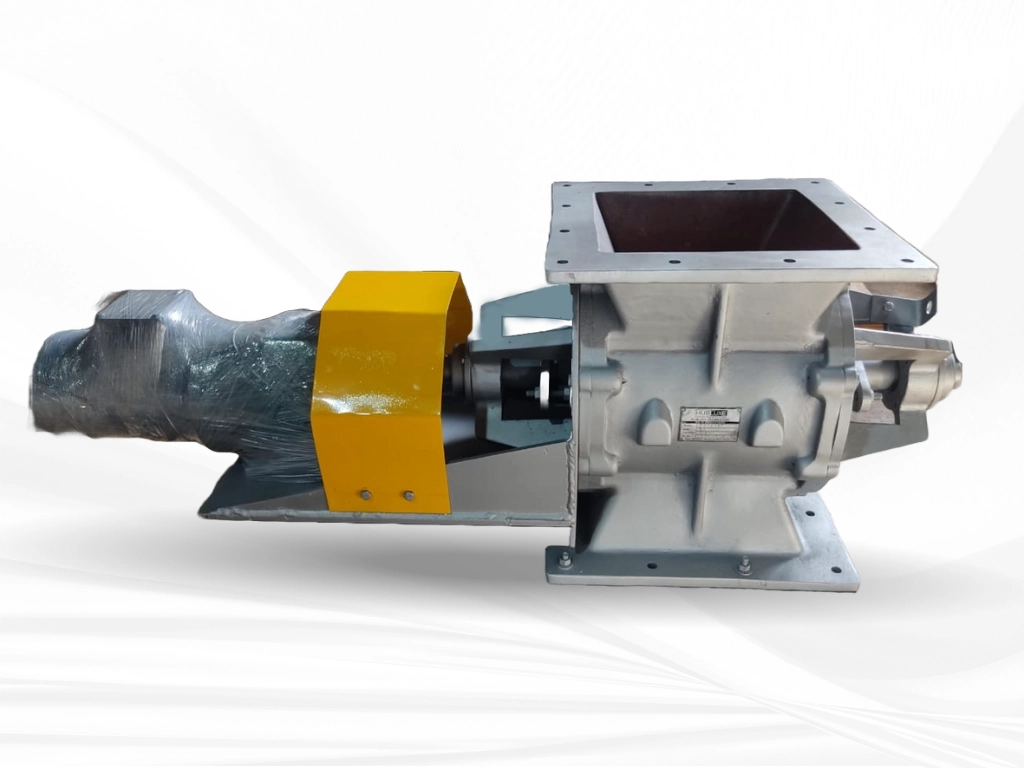

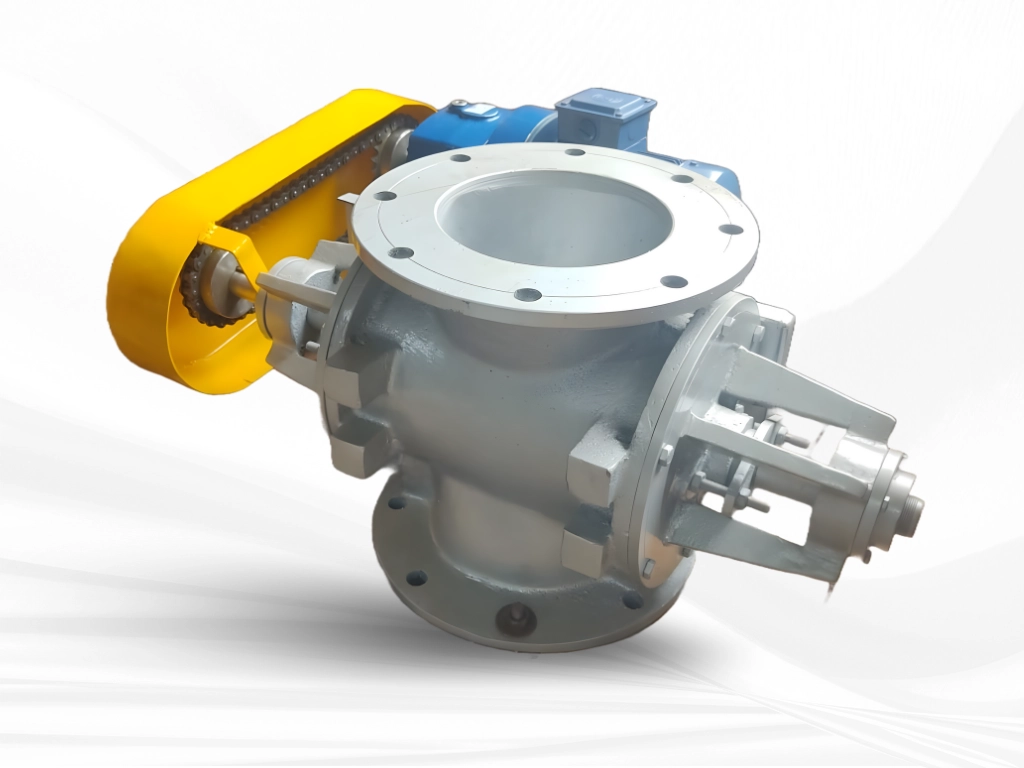

Chain Drive Rotary Airlock Valve images:
Chain Drive Rotary Airlock Valves applications:
- Food Industries
- Process Industries
- Pharmaceuticals
- Chemicals
- Plastic
- Cement industries
FAQs (Frequently asked questions)
Find detailed answers to common questions about Chain Drive rotary airlock Valve in our Knowledge centre.
A Chain Drive Rotary Airlock valve uses an external chain & sprocket connected to motor + gearbox for power transmission to the rotor shaft of the valve.
Chain drive rotary airlock valve is a better option from service point of view, which is easy to service the rotary airlock valve.
