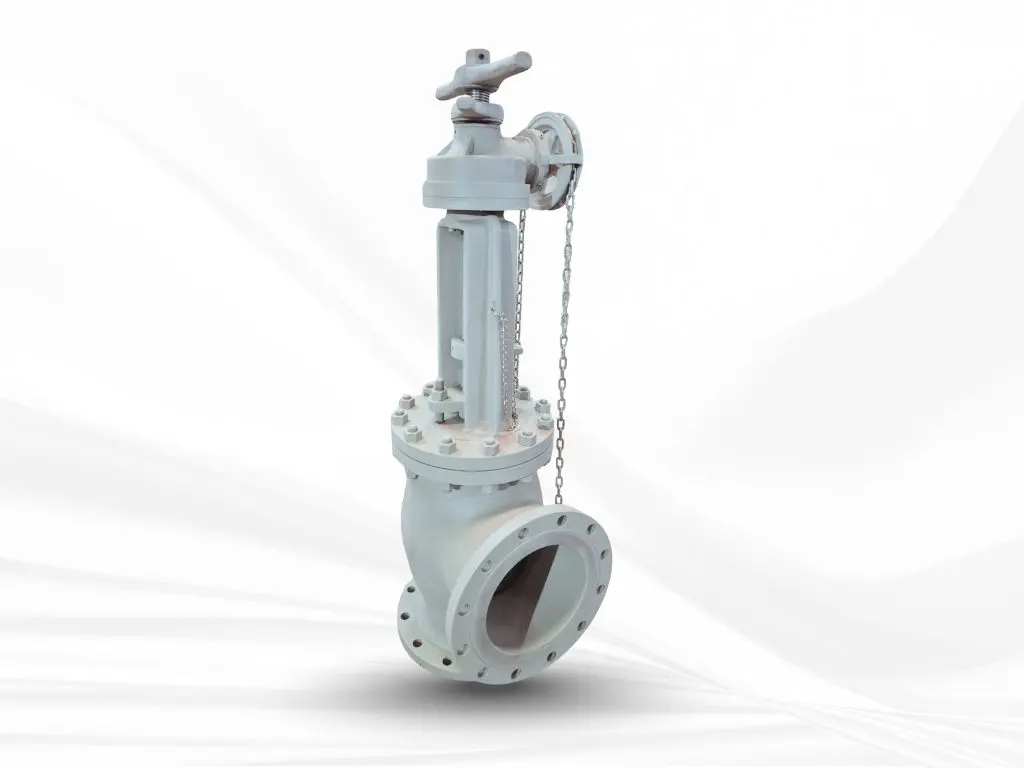

90 Degree Slurry Angle Valve manufacturer
Key features:
- Hubluxe Slurry Angle Valve feature a streamlined angular body design that ensures minimal resistance to flow and prevents material accumulation
- Complies with ASME and API standards for design and performance integrity
- Heavy-duty body construction with robust wall thickness for long-term reliability
- The valves are well equipped with self-grinding internal with Stellite® hardfacing Disc
- Wide range of internal linings available to withstand the effects of erosion and corrosion
- Optimized for easy maintenance and extended service life in abrasive environments
- We can offer custom Face to Face dimension for Slurry 90 degree Angle Valve
- 90 degree Slurry Angle Valve designed for customer’s special applications
Contact Hubluxe Engineering today for a competitive quote on 90 Degree Slurry angle valve.
HUBLUXE ENGINEERING, operating under its esteemed brand name “HUBLUXE,” is a recognized manufacturer of high-performance Slurry Angle Valves specifically engineered for slurry service applications.
Our products are widely used in alumina refineries, mineral processing plants, and other mining operations, where abrasion, corrosion, and scale build-up are common process challenges.
Designed with precision and durability in mind, HUBLUXE 90 Degree Slurry Angle Valve offer superior resistance to erosion and corrosion, ensuring reliable operation even in the most challenging service environments. The unique construction allows for efficient handling of settled slurries or scale build-up, enabling smooth flow control, reduced maintenance requirements, and extended service life.
Our in-house design, testing, and quality assurance teams ensure every valve meets international performance and safety standards. With customization flexibility, short delivery cycles, and competitive cost advantages, HUBLUXE has established itself as a trusted partner for clients seeking dependable valve solutions across Asia, the Middle East, Africa, and Europe.
90 degree slurry angle valve technical specifications:
Product: ‘HUBLUXE’ 90 degree Slurry Angle Valve
Size: DN 50 – DN 600 (2” – 24”)
Material of construction (MOC): Body & Bonnet [ ASTM A216 Gr. WCB (Cast Steel), ASTM A351 Gr. CF8 (Stainless steel SS304), ASTM A351 Gr. CF8M (Stainless steel SS316), ASTM A351 CF3M (SS 316L)]
Pressure class: 150#, 300#, 600#
Bore size: Full Bore / Reduce Bore
End connections: Flange end (ASME B16.5), Butt weld end (ASME B16.25)
Design standard: ASME B16.34 / EN ISO 17292 / BS 5351
Face to Face standard: ASME B16.10
Testing standard: API 598 / EN-12266
Flange standard: ASME B16.5 / EN1092-1
Drilling Standard: ANSI B16.5

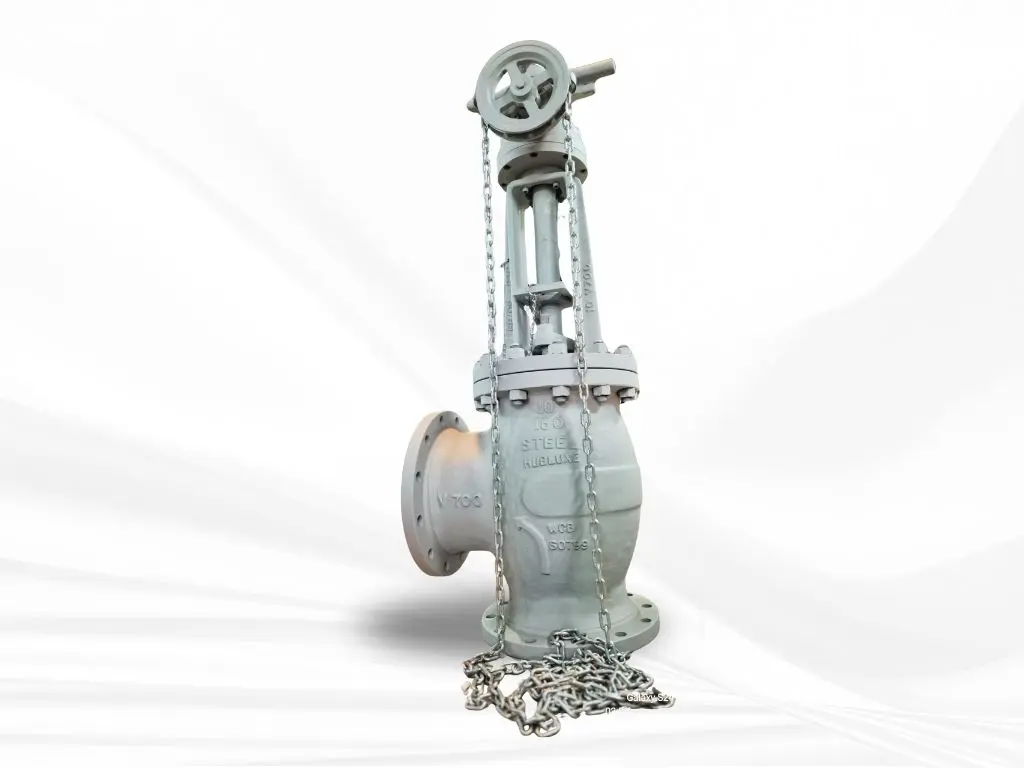

Mode of operation: Manual handwheel / Chain wheel / Pneumatic / Hydraulic / Electrical actuator
Prominent & leading manufacturer for Slurry Angle valve with external seat, 45 degree Angle slurry valve, Bayonet valve, Straight through Angle slurry Valve, 3 way Angle Slurry valve, Pinch Valve for highly corrosive or highly abrasive mediums. The valves are provided with large stem diameter for stiffness & strength.
At Hubluxe Engineering, we specialize in the design and manufacturing of:
- Angle slurry valve with external seat
- 48-degree angle slurry valve
- Slurry Angle Bayonet Valve
- Straight through Angle Slurry Valve
- Slurry Angle Lift Check Valve
- 3 Way Angle Slurry valve
As a trusted name in flow control solutions, Hubluxe delivers precision-engineered valves that withstand abrasive, high-solid, and corrosive media in sectors such as mining, wastewater treatment, pulp & paper, and chemical processing.
Our angle valves are built with sturdy construction and wear-resistant materials to ensure exceptional durability. Designed and manufactured in-house, each valve is quality-tested to meet global standards, ensuring long service life and minimal maintenance.
General Assembly drawing for Slurry angle valve (Manual-Hand lever operated):
| # | Part Name | Material Specification |
|---|---|---|
| 1 | Body | ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M |
| 2 | Bonnet | ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M |
| 3 | Seat Ring | AISI 1020 + Stellite 6 weld |
| 4 | Disc | SS410/SS420 + Stellite 6 weld |
| 5 | Bushing Handle | ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M |
| 6 | Jam Nut | ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M |
| 7 | Stem Handle | ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M |
| 8 | Gland Follower | ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M |
| 9 | Stem | AISI 410 / AISI 304 / AISI 316 |
| 10 | Yoke Bush | EN-19/ASTM A29 Gr.4140 |
Slurry angle valve applications:
- Mining and mineral processing
- Alumina and bauxite refining
- Slurry pipelines
- Chemical industries
- Pulp and paper plants
- Power generation and ash handling systems
FAQs (Frequently asked questions)
Find detailed answers to common questions about Slurry Angle Valve in our Knowledge centre.
A slurry angle valve is an industrial control valve designed to manage the flow of abrasive, corrosive, and solid-laden fluids. Its angular design prevents clogging, enhances flow efficiency, and minimizes wear-tear, making it ideal for handling slurries in mining, mineral processing, and chemical plants.
A slurry angle valve regulates slurry flow through a 45° or 90° angled body, allowing gravity and fluid pressure to flush away solids and prevent build-up. The valve opens and closes via a handwheel, gear, or actuator, depending on the application.
The benefits of using slurry angle valves are:
- Enhanced wear resistance
- Reduced clogging and sediment accumulation
- Longer valve service life
- Easy maintenance and cleaning
- Efficient flow control of abrasive and corrosive media
Yes, reputable manufacturers like HUBLXUE ENGINEERING offer customizations such as:
- Custom face-to-face dimensions
- Special linings or coatings
- Actuator type options
- Custom pressure or temperature ratings
Reknowned exporter – Hubluxe Engineering: A manufacturer specializing in angle slurry valves for industries like mining and wastewater treatment.
Slurry angle valves can be purchased from HUBLUXE ENGINEREING specializing in flow control solutions.
We are the brand that offer customization, global standards followed in design & testing, and excellent after-sales support.
